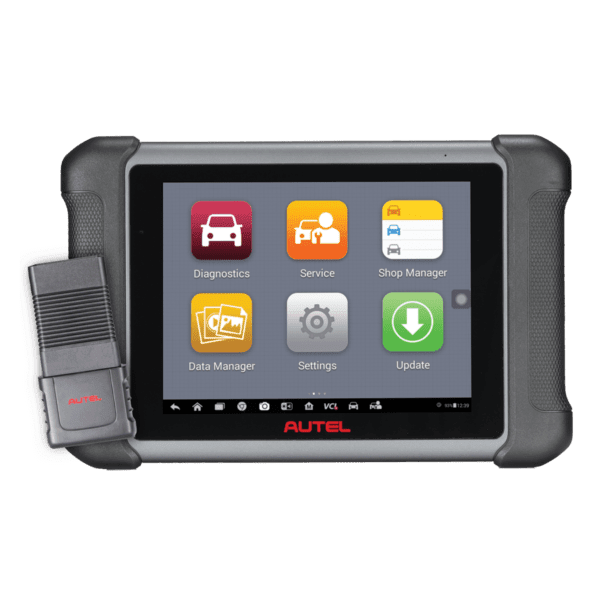

MaxiSYS MS906S
Diagnostics Wireless Tablet w/Bluetooth VCI
The MaxiSYS MS906S is an 8-inch touchscreen Android-based advanced diagnostic tablet powered by a hexa-core processor. It features 64GB memory and the Bluetooth-enabled VCI Mini with extension for easier OBDII port attachment. The MS906S features advanced diagnostics including active tests and bi-directional controls. Features include Scan VIN optical VIN/barcode recognition for quick vehicle identification, FCA Secure Gateway Access with AutoAuth subscription, Pre/Post-SCAN customizable reports, and forthcoming Cloud Data management and Repair & Diagnostic Database. The MS906S is packaged in blow-molded case, includes free technical support, and one-year free software updates with limited warranty.
| Availability: | This product has been discontinued. |
|---|---|
| MS906S1YR | Total Care (TCP) for MS906S |
- 8-inch Wireless Touchscreen Diagnostics Tablet
- Compatible with U.S., Asian and European Vehicles, 1996 and newer
- Advanced Diagnostics, Bi-Directional Control and Active Tests
- Bluetooth VCI Mini with extension for easier OBDII port connection
- Android 4.4, Hexa-core Processor, 64 GB Memory
- Expansive Service Function Menu
- Scan VIN optical VIN/barcode recognition for quick vehicle identification
- FCA Secure Gateway Access with AutoAuth subscription
- Pre/Post Scan Reports
- One-year free software updates with one year limited warranty
Additional information
| Availability: | This product has been discontinued. |
|---|---|
| MS906S1YR | Total Care (TCP) for MS906S |
Specifications
| Operating System | Android™ 4.4.2 Operating System |
| Processor | Samsung Exynos 5260 hexa-core（2*A15 1.7G + 4*A7 1G) |
| Memory | 64G Memory |
| Connectivity | Includes Bluetooth VCI Mini |
| Camera (rear) | 8MP Rear Camera |
| Power and Battery | Rechargeable 10,000mAh Battery |
Videos
What's Included
Compare Similar
| MaxiCheck MX808 | MaxiSYS MS906S | MaxiSYS MS906PRO | |
|---|---|---|---|
| Image |  |
 |
 |
| HARDWARE | |||
| Connection |
Bluetooth VCI-MINI
|
Bluetooth MaxiSYS VCI-200
|
|
| Screen |
7-Inch Touchscreen
1024 x 600 DPI / LCD
|
8-Inch Touchscreen
1024 x 768 DPI / TFT-LCD Asahi Glass
|
8-Inch Touchscreen
1920 x 1200 DPI / TFT-LCD Asahi Glass
|
| Battery |
5,000 mAh
|
10,000 mAh
|
11,600 mAh
|
| Processor |
1.5GHz
Cortex-A9 QUAD-CORE
|
1.7GHz + 1GHz
HEXA-CORE
|
2.2GHz + 1.8GHz
OCTA-CORE
|
| Memory |
1G + 32G
|
64GB SSD / 2GB RAM
|
128GB SSD / 4GB RAM
|
| Camera |
—
|
8MP Rear
|
16MP Rear / 16MP Front
|
| Docking Station |
—
|
—
|
—
|
| SOFTWARE | |||
| Operating System |
Android 4.4.4
|
Android 4.4
|
Android 10.0
|
| Software Updates |
Update Via Wi-Fi
|
1 Year Free
Update Via Wi-Fi
|
1 Year Free
Update Via Wi-Fi
|
| Automatic Detection |
Auto-Vin / Auto-Scan
|
Auto-Vin / Auto-Scan
Scan Vin / Plate Scan |
|
| Secure Gateway Access |
—
|
Authorized FCA Access
With Autoauth Account
|
Authorized FCA Access
With Autoauth Account
|
| License Plate Reader |
—
|
—
|
Available On
Select Vehicles
|
| Vehicle Coverage |
US, Asian & European
1996 And Newer Passenger / Light Duty
Some Medium Duty |
US, Asian & European
1996 And Newer Passenger / Light Duty
Some Medium Duty |
|
| OBDII Test Modes |
All 10 Test Modes
Live & Freeze Frame / Enhanced Mode 6
|
All 10 Test Modes
Live & Freeze Frame / Enhanced Mode 6
|
|
| Service Resets |
26 Service Features
|
26 Service Features
|
|
| Diesel PM |
Reset Diesel Emissions
Light & Medium Duty Vehicles
|
Reset Diesel Emissions
Light & Medium Duty Vehicles
|
|
| System Diagnostics |
Access All Modules
In all systems
|
Access All Modules
In all systems
|
|
| Component Activations |
Bi-Directional Control
|
Bi-Directional Control
|
|
| Enhanced Functions |
Coding + Adaptations
|
Coding Adaptations
|
|
| ADAS Calibration |
—
|
ADASUpgrade & Frame Kit*
Purchase Required
|
|
| Battery Analysis |
—
|
MAXIBAS Software**
|
|
| Complete TPMS Function |
—
|
—
|
|
| Topology Module Mapping |
—
|
—
|
|
| Oscilloscope |
—
|
—
|
|
| Split Screen Display |
—
|
—
|
