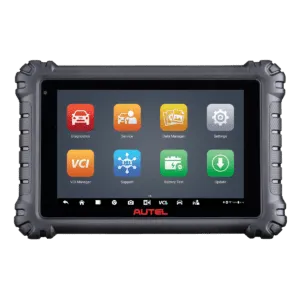

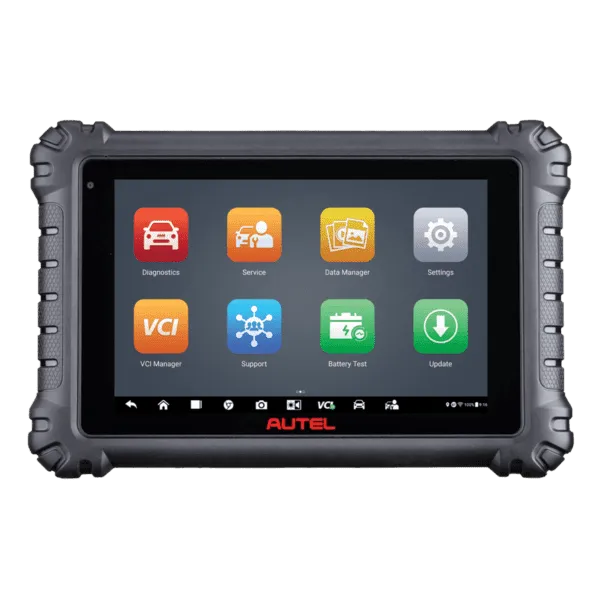

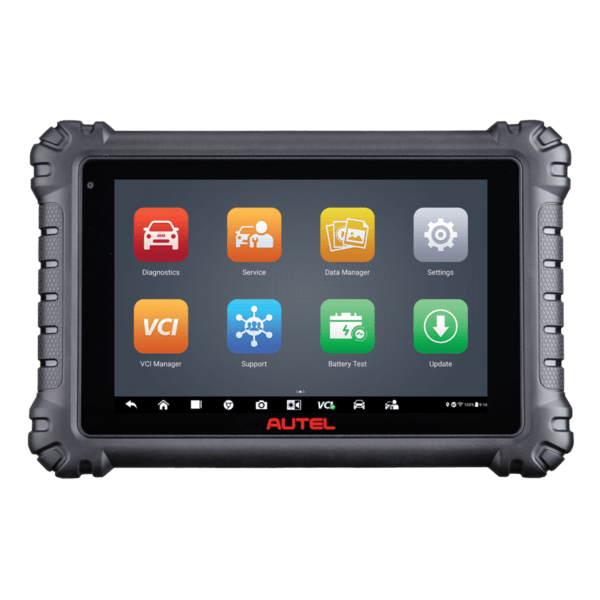

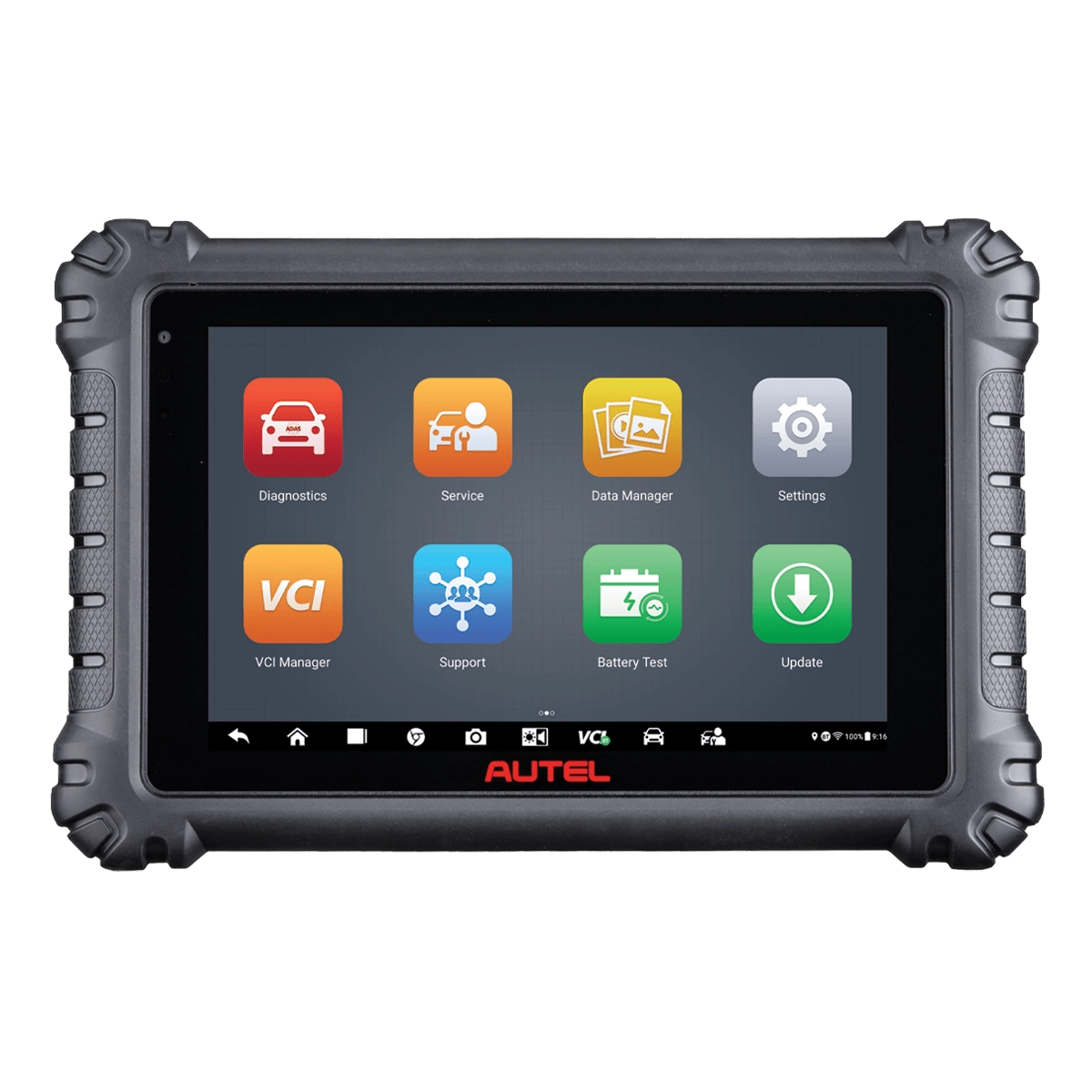

MaxiSYS MS906PRO
Advanced Diagnostic Tablet
The MaxiSYS MS906Pro is an advanced diagnostic tablet compatible with U.S., Asian and European vehicles, 1996 and newer. This 8-inch wireless Android-based touchscreen tablet performs extensive vehicle diagnostics including an all systems scan with ADAS identification, the ability to read/erase codes, view freeze frame and live data, bi-directional control including active testing, coding and adaptations. Includes customizable Pre/Post scans, extensive service menu with 25 of the most of common maintenance tasks. FCA Access via AutoAuth account, starting and charging system analysis with MaxiBAS BT506 Bluetooth tester and terminal cables purchase, ADAS Calibrations capable (frame system and software upgrade required). Includes one year of free software updates and limited hardware warranty.
| MS906P1YR: | Total Care (TCP) for MS906Pro $595.00 |
|---|
- Advanced diagnostic tablet compatible with U.S., Asian and European vehicle, 1996 and newer

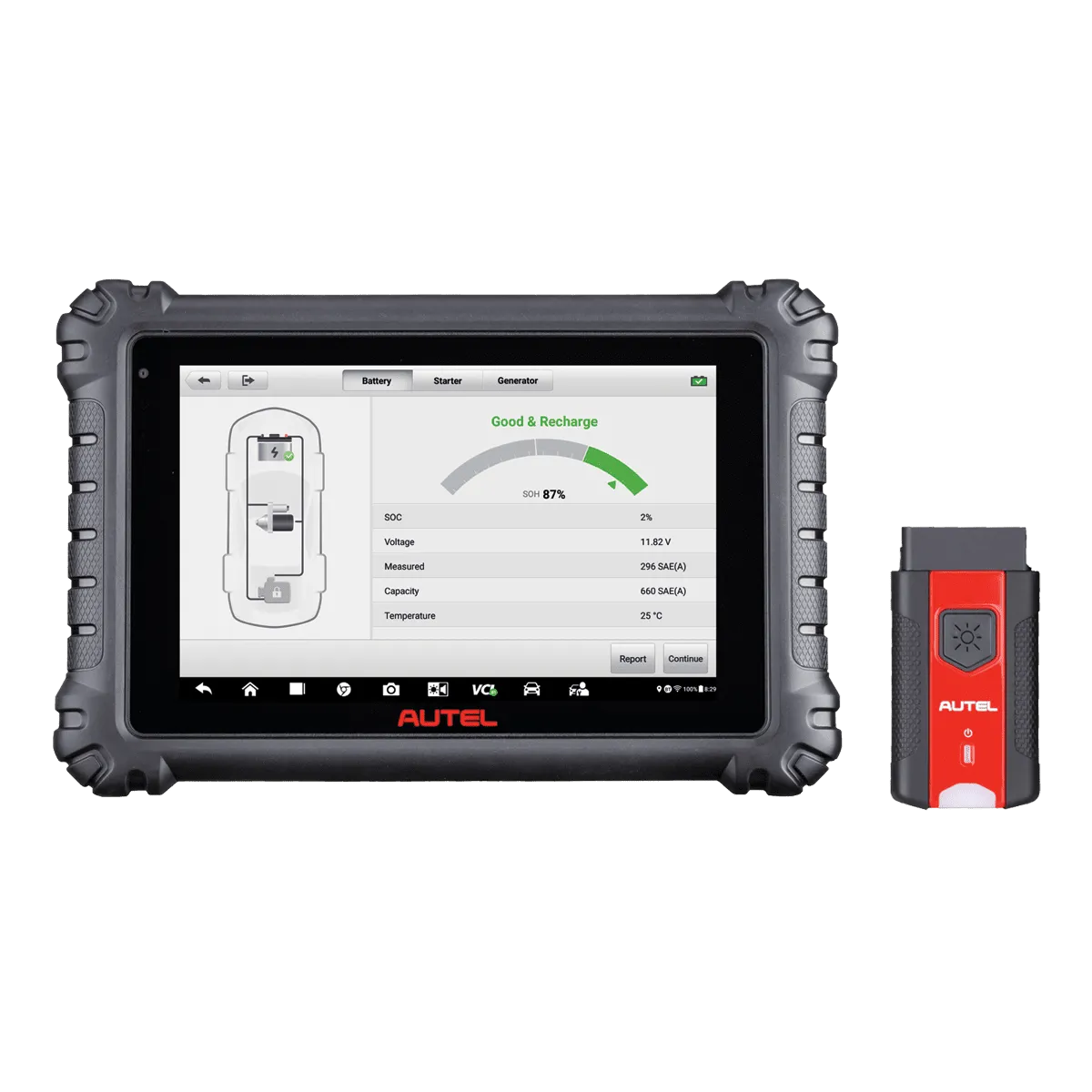

- 8-inch Wireless Touchscreen tablet with Bluetooth-enabled MaxiSYS VCI200
- Octa-Core Processor/128 GB memory / 4 GB RAM
- Performs all system scan with ADAS identification/ Customizable Pre & Post scans
- Read/Erase Codes, View Freeze Frame and Live Data
- Bi-directional control capability including Active test/Performs coding and adaptations
- FCA Access via AutoAuth account/ Battery and Charging System analysis (hardware purchase required)
- ADAS Calibration-capable with software upgrade and Autel Calibration System purchase
- Extensive Service Menu: Quick access to 25 of the most common maintenance tasks
- One Year Free software updates and limited hardware warranty
Additional information
| MS906P1YR: | Total Care (TCP) for MS906Pro $595.00 |
|---|
Specifications
| CPU | Qualcomm 660 Octa-core Processor (2.2GHz Quad-core A73 + 1.8GHz Quad-core A53) |
| Memory | 4/128GB |
| Operating System | Android 7.0 |
| LCD | 8” 1920*1200 |
| Battery | 11 600 mAh |
| Camera |
|
| Special Function | 26 |
| Guide Function | Support Volkswagen, Audi |
| Coding and Adaptation |
|
| TPMS | No |
| ADAS | Support |
| Battery and Electrical System Testing | Support |
| Cloud Services | Support |
| Remote Expert(Coming Soon) | Support |
| Weight | Support |
| Cloud Report Storage | Support |
Videos

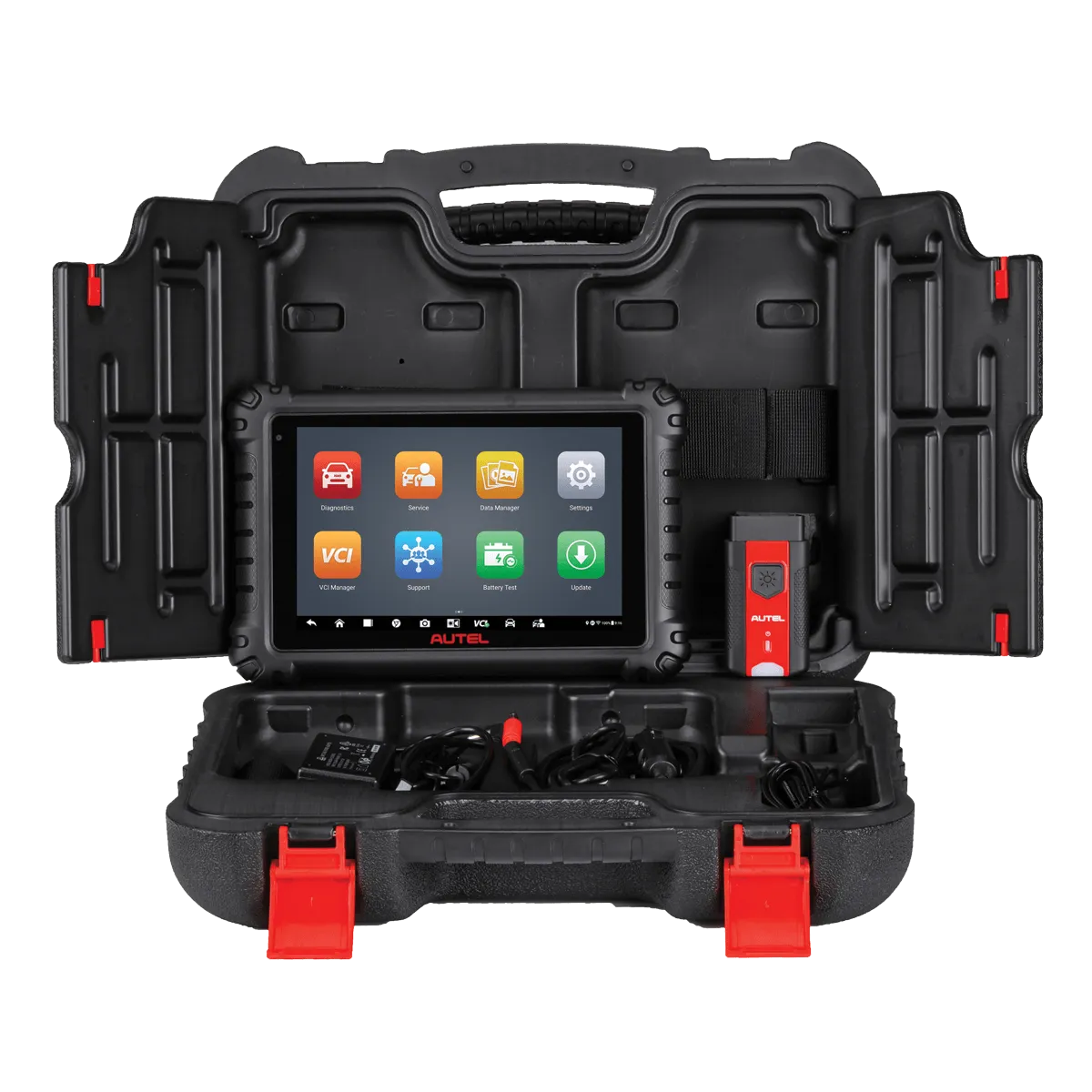

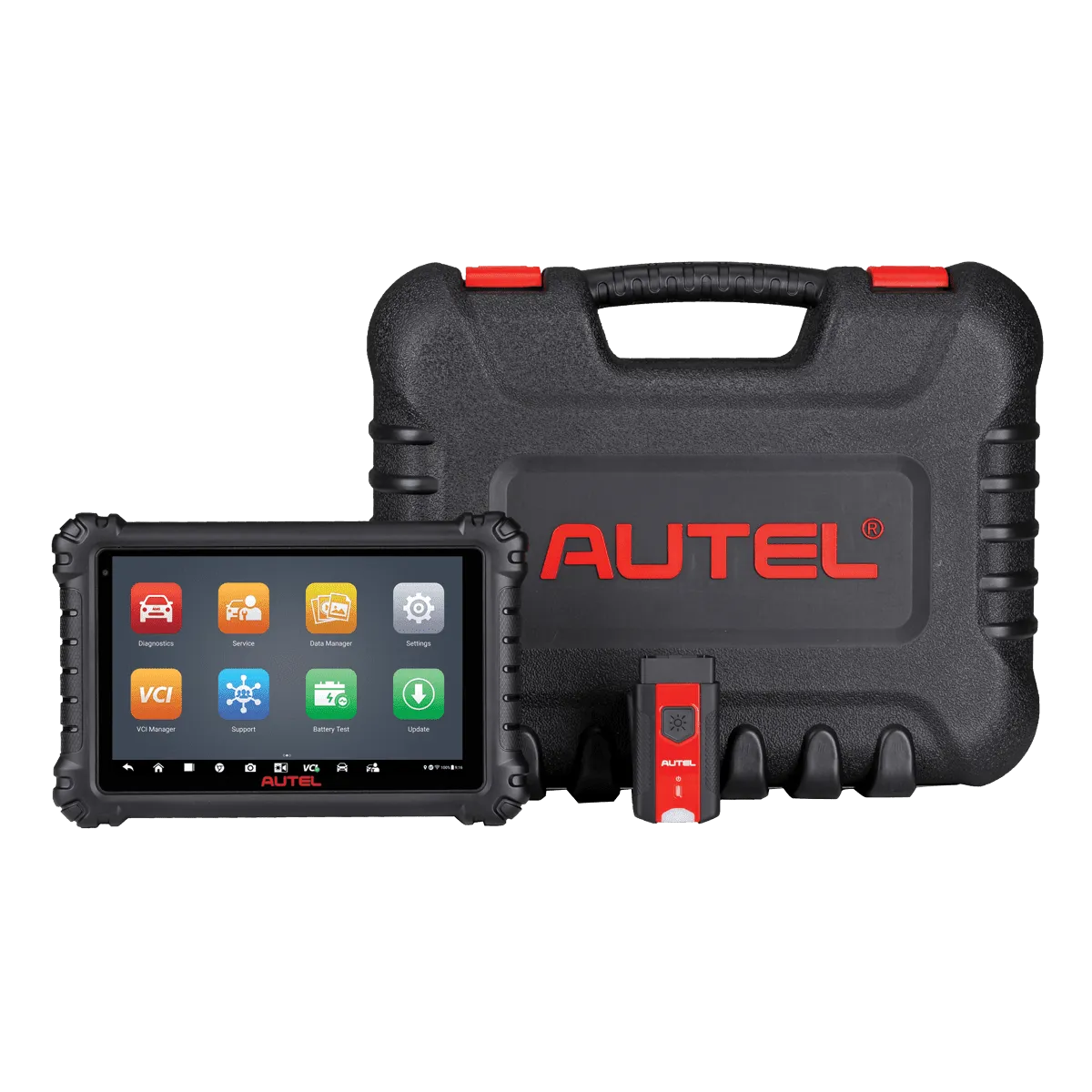

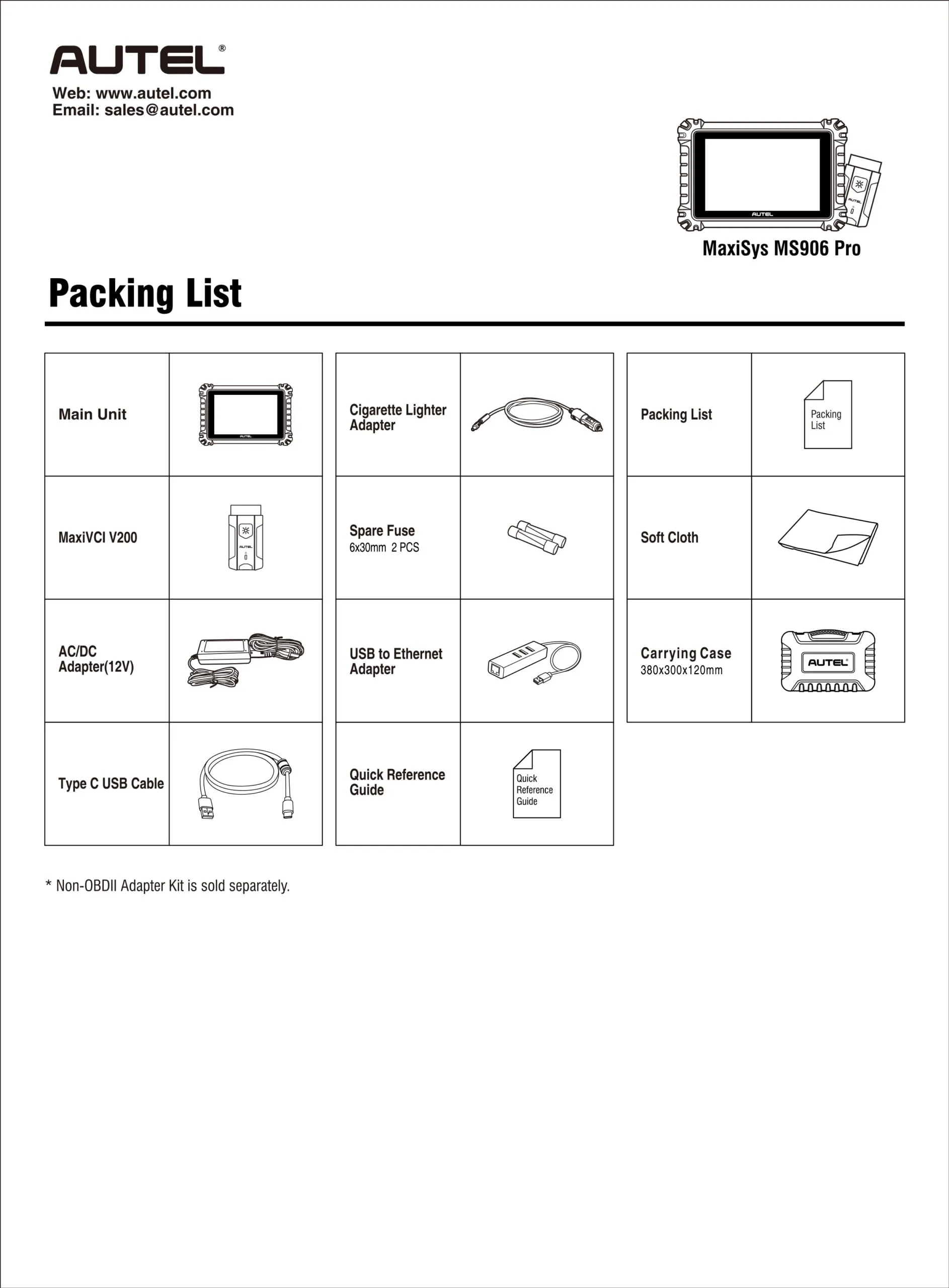

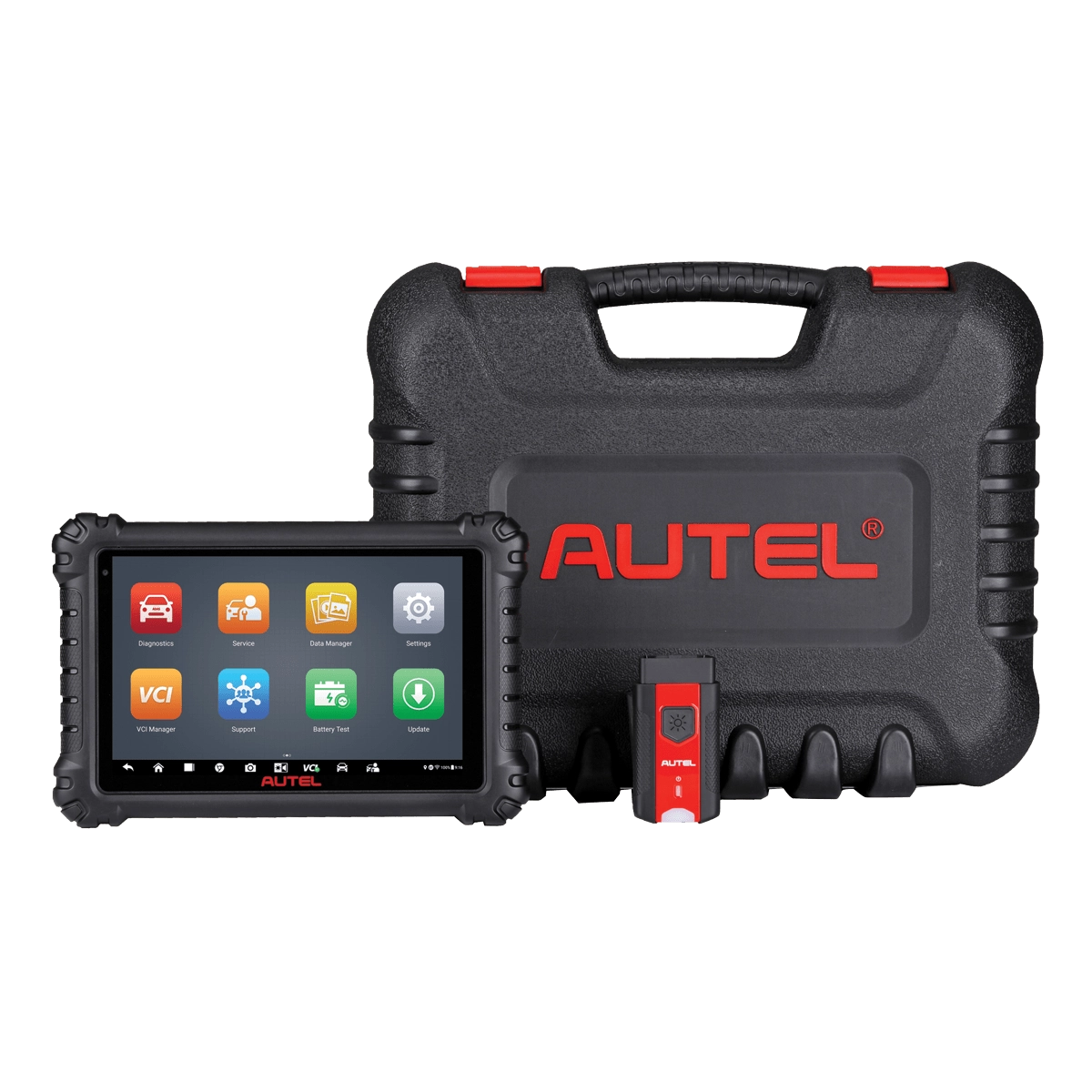

What's Included
Compare Similar

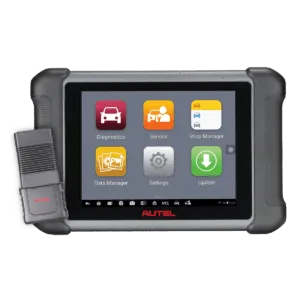

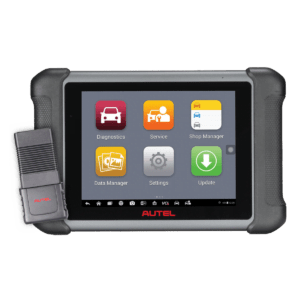

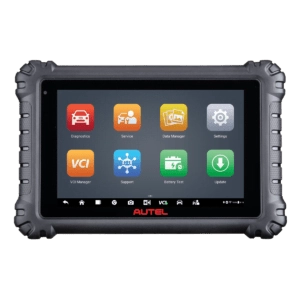

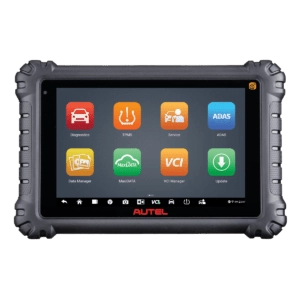

| MaxiSYS MS906S | MaxiSYS MS906PRO | MaxiSYS MS906 Pro-TS | |
|---|---|---|---|
 |
 |
 |
|
| HARDWARE | |||
| Connection |
Bluetooth VCI-MINI
|
Bluetooth MaxiSYS VCI-200
|
Bluetooth MaxiSYS VCI-200
|
| Screen |
8-Inch Touchscreen
1024 x 768 DPI / TFT-LCD Asahi Glass
|
8-Inch Touchscreen
1920 x 1200 DPI / TFT-LCD Asahi Glass
|
8-Inch Touchscreen
1920 x 1200 DPI / TFT-LCD Asahi Glass
|
| Battery |
10,000 mAh
|
11,600 mAh
|
11,600 mAh
|
| Processor |
1.7GHz + 1GHz
HEXA-CORE
|
2.2GHz + 1.8GHz
OCTA-CORE
|
2.2GHz + 1.8GHz
OCTA-CORE
|
| Memory |
64GB SSD / 2GB RAM
|
128GB SSD / 4GB RAM
|
128GB SSD / 4GB RAM
|
| Camera |
8MP Rear
|
16MP Rear / 16MP Front
|
16MP Rear / 16MP Front
|
| Docking Station |
—
|
—
|
—
|
| SOFTWARE | |||
| Operating System |
Android 4.4
|
Android 7.0
|
Android 7.0
|
| Software Updates |
1 Year Free
Update Via Wi-Fi
|
1 Year Free
Update Via Wi-Fi
|
1 Year Free
Update Via Wi-Fi
|
| Automatic Detection |
Auto-Vin / Auto-Scan
|
Auto-Vin / Auto-Scan
Scan Vin / Plate Scan |
Auto-Vin / Auto-Scan
Scan Vin / Plate Scan |
| Secure Gateway Access |
Authorized FCA Access
With Autoauth Account
|
Authorized FCA Access
With Autoauth Account
|
Authorized FCA Access
With Autoauth Account
|
| License Plate Reader |
—
|
Available On
Select Vehicles
|
Available On
Select Vehicles |
| Vehicle Coverage |
US, Asian & European
1996 And Newer Passenger / Light Duty
Some Medium Duty |
US, Asian & European
1996 And Newer Passenger / Light Duty
Some Medium Duty |
US, Asian & European
1996 And Newer Passenger / Light Duty
Some Medium Duty |
| OBDII Test Modes |
All 10 Test Modes
Live & Freeze Frame / Enhanced Mode 6
|
All 10 Test Modes
Live & Freeze Frame / Enhanced Mode 6
|
All 10 Test Modes
Live & Freeze Frame / Enhanced Mode 6
|
| Service Resets |
26 Service Features
|
26 Service Features
|
26 Service Features
|
| Diesel PM |
Reset Diesel Emissions
Light & Medium Duty Vehicles
|
Reset Diesel Emissions
Light & Medium Duty Vehicles
|
Reset Diesel Emissions
Light & Medium Duty Vehicles
|
| System Diagnostics |
Access All Modules
In all systems
|
Access All Modules
In all systems
|
Access All Modules
In all systems
|
| Component Activations |
Bi-Directional Control
|
Bi-Directional Control
|
Bi-Directional Control
|
| Enhanced Functions |
Coding + Adaptations
|
Coding Adaptations
|
Coding Adaptations
|
| ADAS Calibration |
—
|
ADASUpgrade & Frame Kit*
Purchase Required
|
ADASUpgrade & Frame Kit*
Purchase Required
|
| Battery Analysis |
—
|
MAXIBAS Software**
|
MAXIBAS Software**
|
| Complete TPMS Function |
—
|
—
|
TPMS Diagnostics, Service & 1-Sensor Programming
|
| Topology Module Mapping |
—
|
—
|
—
|
| Oscilloscope |
—
|
—
|
—
|
| Split Screen Display |
—
|
—
|
—
|
