MaxiSYS MS909CV

Name: MaxiSYS MS909CV | Autel
SKU: MS909CV
Price: 5995.00 USD
Availability: InStock

Commercial Vehicle Diagnostic Tablet

The Autel MaxiSYS MS909CV is a 9.7-inch wireless Android diagnostic tablet for light, medium, and heavy-duty vehicles, including off-road construction vehicles. The MS909CV offers Autel’s most comprehensive commercial vehicle diagnostic tablet and service capabilities with all-systems auto scan, network topology, viewing and graphing live data, performing bi-directional controls and tests for Class 1-Class 9 heavy-duty vehicles and off-road construction equipment.

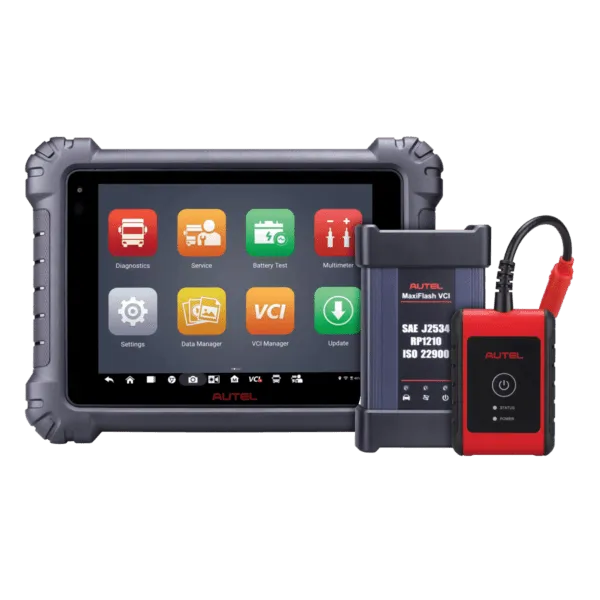

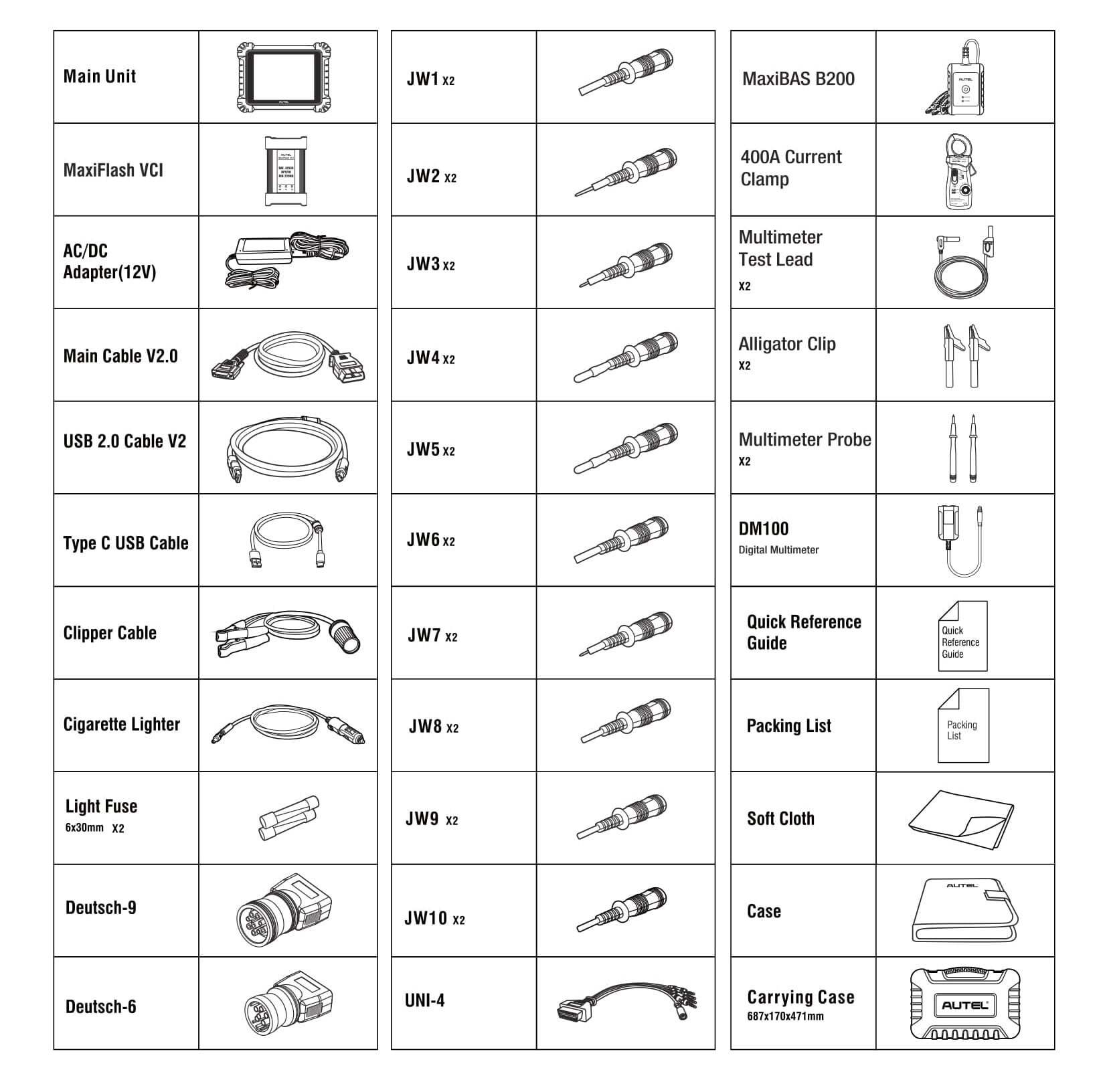

The unit also features Expert Mode for direct access to OE-specific systems, including engine, transmission, and braking systems. The MS909CV can perform dynamic and static ADAS calibrations (static calibrations require the purchase of an Autel Commercial Vehicle ADAS calibration package). The tablet ships with the MaxiBAS B200 battery/starting/charging system test device, Deutsch 6 Pin & 9 Pin and Full Probe set, and the MaxiFlash VCI/J2534 pass-thru programmer.

MS909CV1YRUP:	Total Care (TCP) for MS909CV $1495.00

For pricing, contact your authorized Autel tool dealer.

SKU: MS909CV Categories: Diagnostic Tools, Commercial Vehicle

Where To Buy

MaxiSYS MS909CV performs enhanced system diagnostics on more than 80 models of light, medium, and heavy duty commercial vehicles

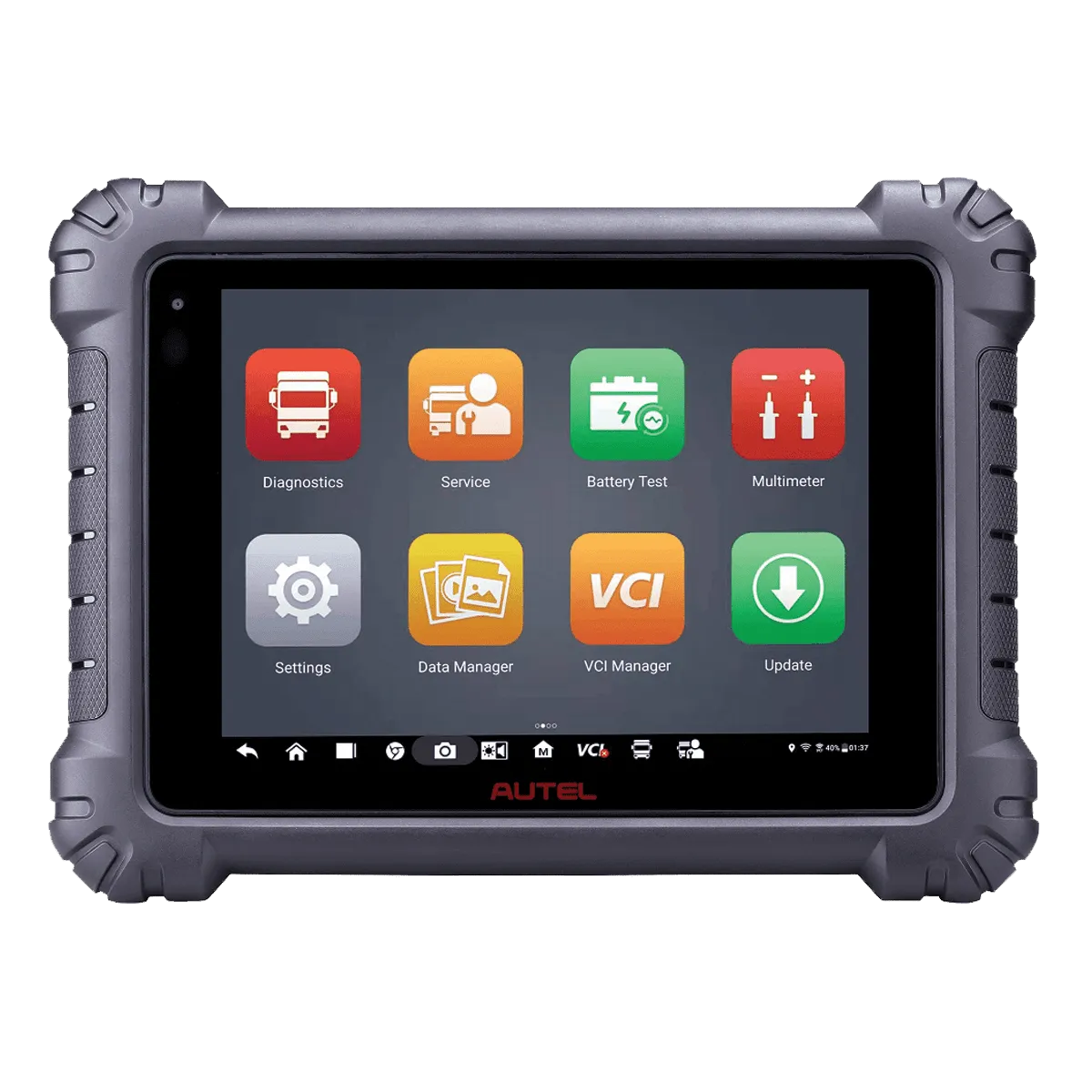

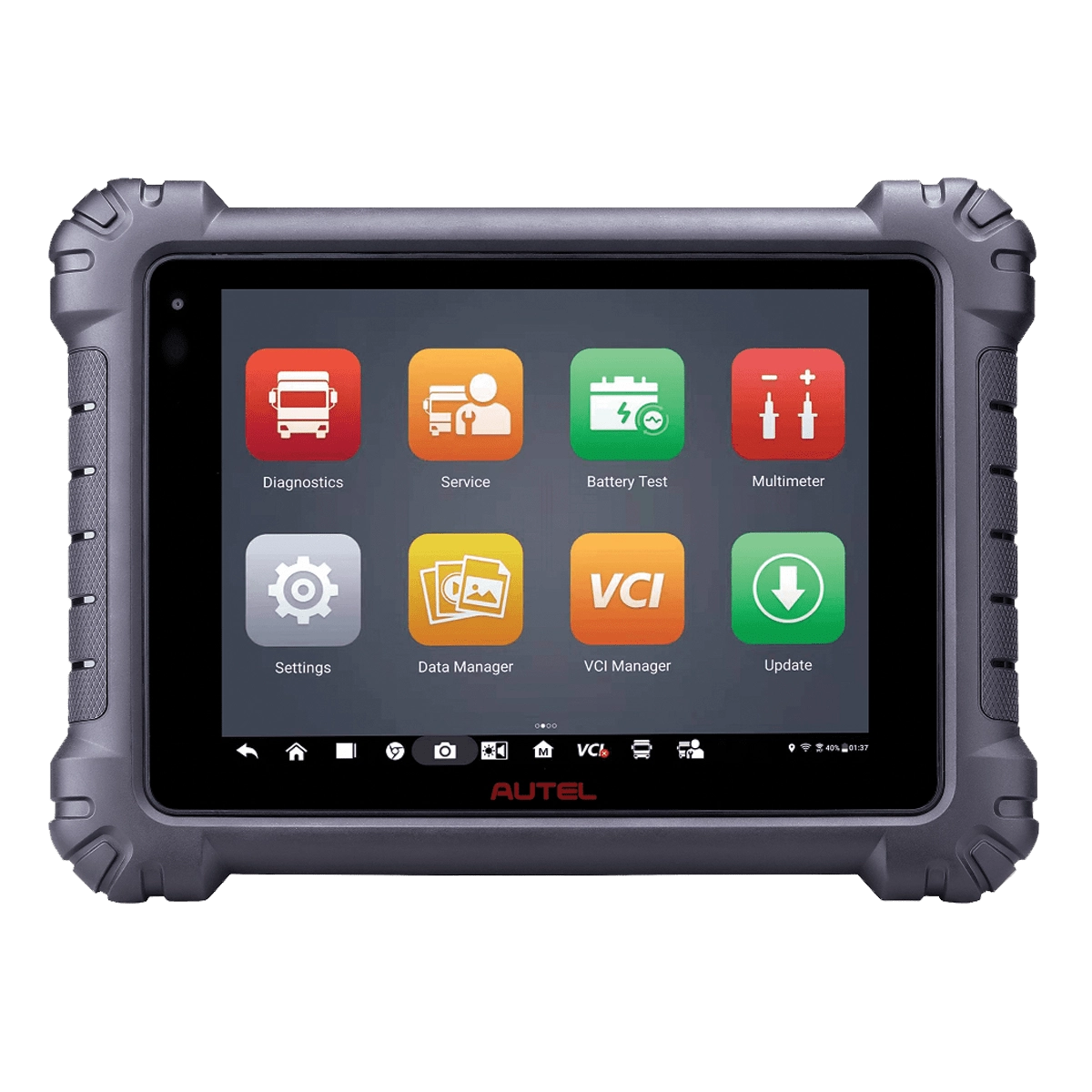

9.7-inch Wireless Android-Based Touchscreen Diagnostics Tablet
Octa-core Processor / 128 GB Storage Memory
Engine diagnostic coverage for construction & agricultural machinery
Wireless Vehicle Communication Interface (VCI)/J2534 pasthru programming device

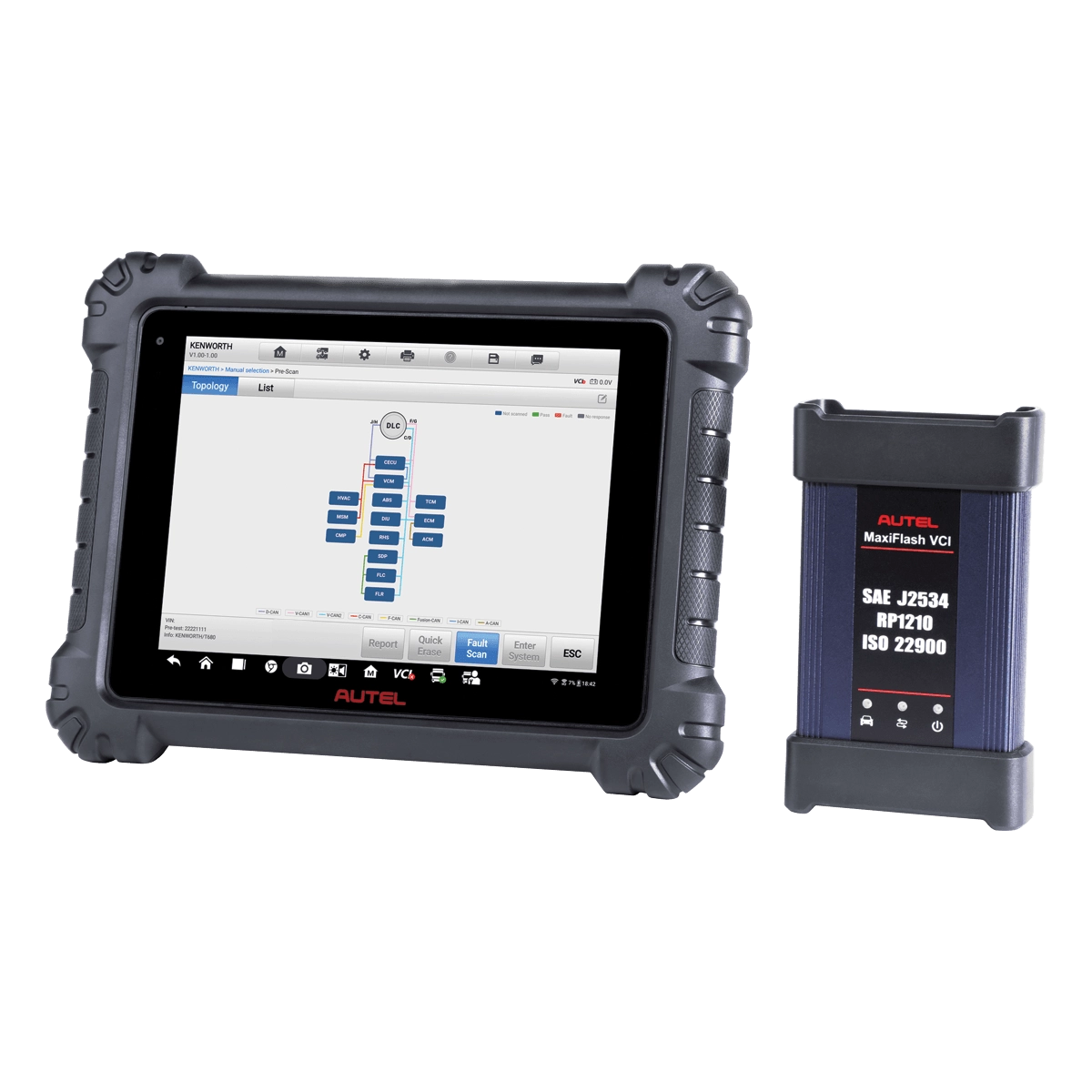

Topology Module Mapping
Performs Starting and Charging Systems Analysis with included MaxiBAS B200 tester with alligator clamps
Includes Multimeter & Amp Clamp
ADAS Calibration Software for Class 3-5 vehicles and Class 6 to 8 Vehicles with Dynamically Calibrated Systems
Rapid Vehicle Identification via VINscan and AutoVin
Includes One Year Limited Warranty and Free Software Updates

The MS909CV is equipped to handle numerous HD protocols, including:

SAE J1939: Commonly used in heavy-duty vehicles for CAN communication
SAE J1708: A legacy protocol for older heavy-duty applications
ISO 15765: CAN protocol for OBD-II diagnostics
ISO 14229 (UDS): Unified Diagnostic Services for advanced vehicle diagnostics
PLC J2497: Power Line Carrier communication for trailer ABS systems
ISO 11898-2/3: High-speed and low-speed CAN protocols
SAE J1850 PWM/VPW: Used in Ford SCP and GM Class 2 systems
DoIP (ISO 13400): Diagnostics over IP for modern vehicles
CAN FD: Enhanced CAN protocol for faster data transmission

Additionally, the MS909CV supports Caterpillar’s proprietary CDL protocol, enabling diagnostics on Caterpillar equipment, such as wheel loaders and excavators. This includes bi-directional controls and active tests for hydraulic systems.

Operating System	Android 7.0
Processor	Qualcomm 660 Octa-core Processor (2.2GHz Quad-core A73 + 1.8GHz Quad-core A53)
Memory	4GB RAM & 128GB On-board Memory
Display	9.7-inch TFT-LCD with 1536 x 2048 resolution & capacitive touch screen
Connectivity	Dual Wi-Fi (802.11 a/b/g/n/ac 2x2 MIMO) BT V5.0 + BR/EDR GPS USB 2.0 (2 USB TYPE-A ports and a Mini USB port) HDMI 2.0 SD Card (Support up to 256GB)
Camera	Rear: 16 Megapixel, Autofocus with Flashlight Front: 5 Megapixel
Sensors	Gravity Accelerometer, Ambient Light Sensor (ALS)
Audio Input/Output	Microphone Dual Speakers 3-Band 3.5 mm stereo/standard headset jac
Power and Battery	15000mAH 3.8V lithium-polymer battery Charging via 12V AC/DC power supply with the temperature between 0°C and 45°C
Input Voltage	12V/1.3A Adapter
Operating Temperature	0 to 50°C (32 to 122°F)
Storage Temperature	-20 to 60°C (-4 to 140°F)
Dimensions(W x H x D)	304.4 mm (11.98") x 227.8 mm (8.97") x 42.5 mm (1.67")
Weight	1.66kg (3.66 lb.)
Protocols	DoIP, PLC J2497, ISO-15765, SAE-J1939, ISO-14229 UDS, SAE-J2411 Single Wire Can(GMLAN), ISO-11898-2, ISO-11898-3, SAE-J2819 (TP20), TP16, ISO-9141, ISO-14230, SAE-J2610 (Chrysler SCI), UART Echo Byte, SAE-J2809 (Honda Diag-H), SAE-J2740 (GM ALDL), SAE-J1567 (CCD BUS), Ford UBP, Nissan DDL UART with Clock, BMW DS2, BMW DS1, SAE J2819 (VAG KW81), KW82, SAE J1708, SAE-J1850 PWM (Ford SCP), SAE-J1850 VPW (GM Class2)

	MaxiSYS MS909CV User Manual	Download
	MaxiSYS CV Total Care Program	Download
	MaxiSYS Heavy Duty Comparison Chart	Download
	MaxiSYS MS909CV Off-Highway Flyer	Download

	MaxiSYS MS908CV	MaxiSYS MS908CVII	MaxiSYS MS909CV

HARDWARE
Connection	J2534 MaxiFLASH Elite Wireless Bluetooth	J2534 MaxiFLASH VCI Wireless Bluetooth	J2534 MaxiFLASH VCI Wireless Bluetooth
Screen	9.7-Inch Touchscreen 1024 x 768 DPI / LED color screen	9.7-Inch Touchscreen 1536 x 2048 DPI / LED Color Screen	9.7-Inch Touchscreen 1536 x 2048 DPI / LED Color Screen
Battery	11,000 mAh	15,000 mAh	15,000 mAh
Processor	1.4GHz QUAD-CORE	2.2GHz + 1.8GHz OCTA-CORE	2.2GHz + 1.8GHz OCTA-CORE
Memory	64GB SSD / 2GB RAM	128GB SSD / 4GB RAM	128GB SSD / 4GB RAM
Camera	5.0MP with flashlight	16MP & 5.0MP Front & Rear with Flashlight	16MP & 5.0MP Front & Rear with Flashlight
Docking Station	—	—	—
SOFTWARE
Operating System	Android 4.4.2	Android 10.0	Android 10.0
Software Updates	1 Year Free	1 YEAR FREE	1 YEAR FREE
Automatic Detection	Auto-Vin / Auto-Scan	Auto-Vin / Auto-Scan / ScanVin	Auto-Vin / Auto-Scan / SCANVIN
Secure Gateway Access	Authorized FCA Access With Autoauth Account	Authorized FCA Access With Autoauth Account	Authorized FCA Access With Autoauth Account
License Plate Reader	—	—	—
Vehicle Coverage	Class 3 - Class 9 10,000LBS 33,000LBS	Class 3 - Class 9 10,000LBS 33,000LBS	Class 3 - Class 9 10,000LBS 33,000LBS
OBDII Test Modes	All 10 Test Modes Live & Freeze Frame / Enhanced Mode 6	—	All 10 test modes LIVE & FREEZE FRAME / ENHANCED MODE 6
Service Resets	19 Service Features	25 Service Features	25 Service Features
Diesel PM	Class 1-9 Reset Diesel Emissions	Class 1-9 Reset Diesel Emissions	Class 1-9 Reset Diesel Emissions
System Diagnostics	Access All Modules In all systems on select vehicles	Access All Modules In All Systems on Select Vehicles	Access All Modules In All Systems on Select Vehicles
Component Activations	1,000+ New with software update Bi-directional Controls DPF Regen / Injector Coding	1,000+ New with software updates Bi-directional Controls DPF Regen / Injector coding	1,000+ New with software updates Bi-directional Controls DPF Regen / Injector coding
Enhanced Functions	Advanced Coding + Adaptations	Advanced Coding + Adaptations	Advanced Coding + Adaptations
ADAS Calibration	—	—	Access Static Calibration Class 3-5* Class 6-8 Dynamic Calibration *ADAS Target kits sold separately
Battery Analysis	—	—	MaxiBAS Software with multimeter AMP Clamps & B200 included
Oscilloscope	MP408 Compatible	—	—
