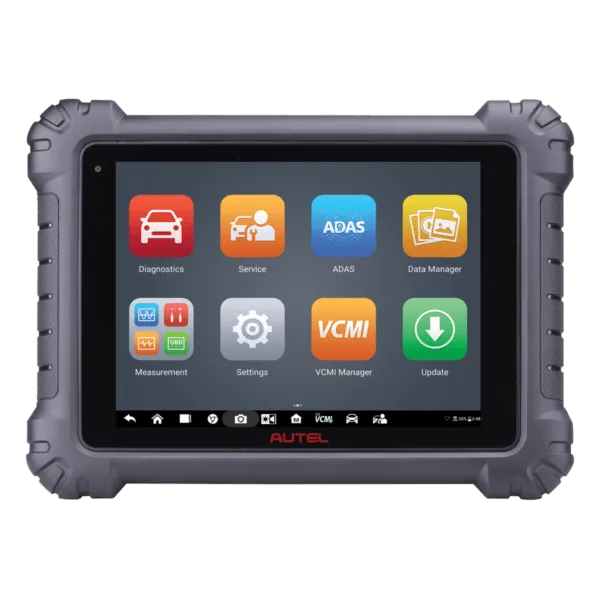

MaxiSYS MS919

Advanced Diagnostic Tablet

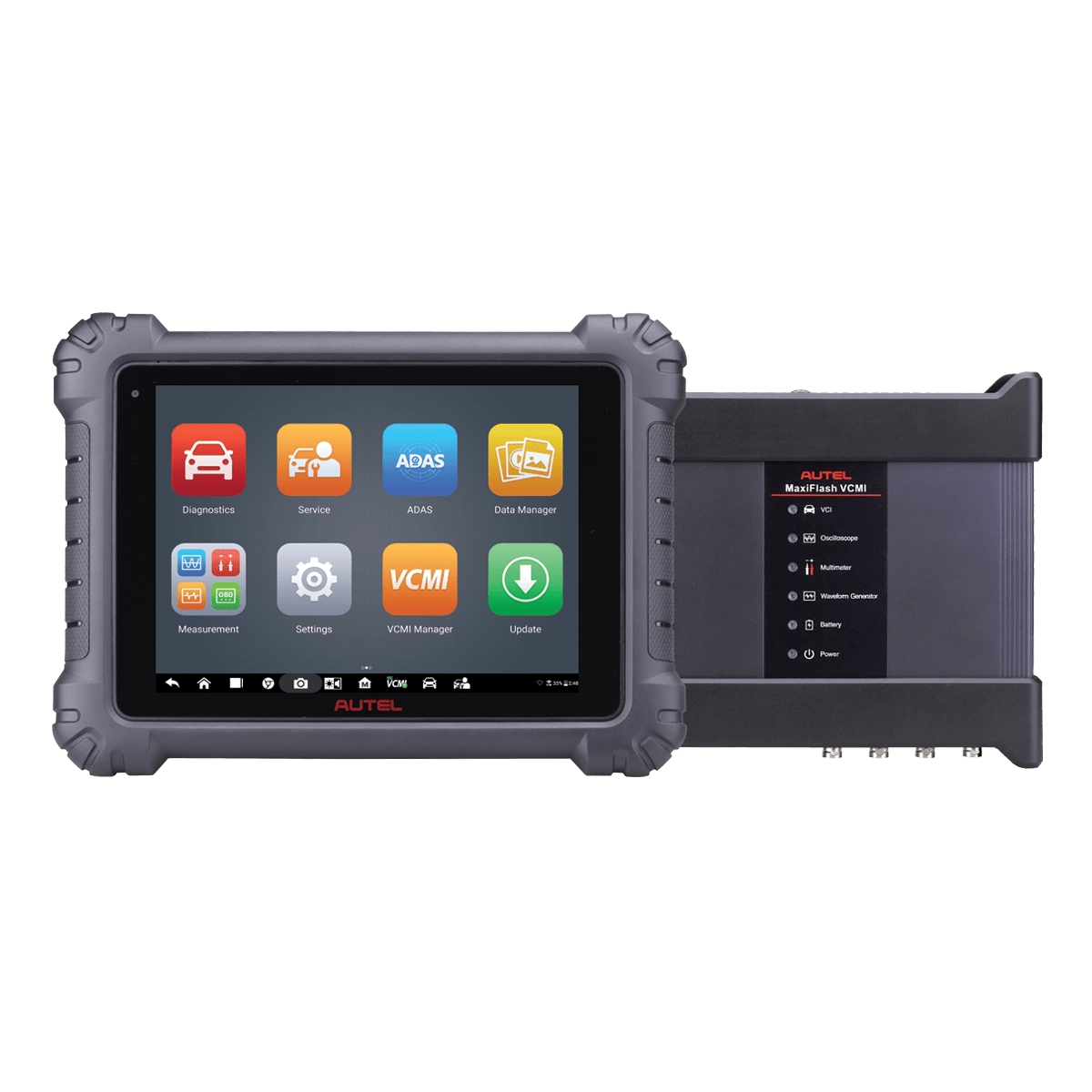

The MaxiSYS MS919 is a 9.7-inch touchscreen Android-based advanced diagnostic tablet powered by an Octa-core processor (2.3GHz Quad + 1.7GHz Quad), 128GB memory and features the MaxiFlash VCMI, a 5-in-1 communication and testing tool providing wireless vehicle communications between the vehicle and tablet and supporting the latest DoIP, D-PDU and Mega CAN vehicle communication protocols. The VCMI also functions as a 4-channel oscilloscope, waveform generator, multimeter and CanBUS tester. The MS919 features dynamic topology module mapping for supported vehicles and Oscilloscope preset guides and tests and waveform library. The MS919 features a rechargeable Lithium battery proving 8 hours of continues use.

MS9191YRUPDATE:

Total Care (TCP) for MS919 $1,495.00

SKU: MS919 Categories: ,

MaxiSYS MS919

  • 9.7’’ Touchscreen (1536 x 2048) / Android 7.0
  • 2.3GHz+1.7GHz Octa-core Processor / 128GB Memory
  • Advanced VCMI 5-In-1 Device: VCI, Oscilloscope, Multimeter, Waveform Generator, CAN BUS Check
  • Oscilloscope Preset Guided & Component Tests / Waveform Library
  • New VCI Protocols: D-PDU, DoIP/CAN FD, Mega CAN
  • Topology Module Mapping: Color Coded All System Status Screen (on supported vehicles)
  • License Plate Reader
  • ScanVIN: Barcode or Text Recognition with Camera
  • Secure Gateway Access: Authorized FCA SGM Access with AutoAuth Account

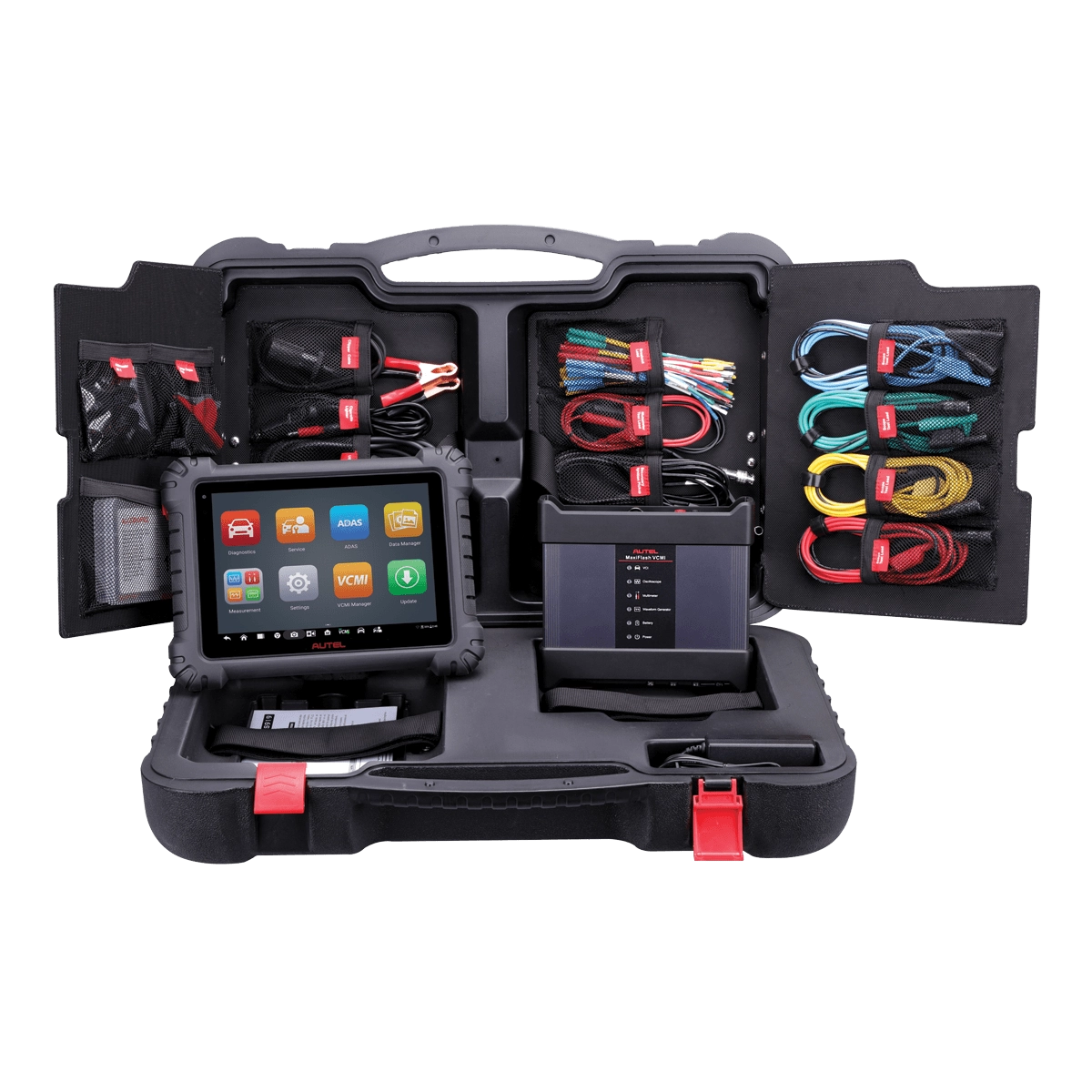

  • Includes Cables, Scope Connectors, Carrying Case, 1YR Warranty & Software Subscription
  • Enhanced Diagnostic Reports: PreSCAN & PostSCAN
  • Dual Wi-Fi Connection
  • 15000mAh - 8hrs Continuous Use / 16MP Rear Camera & 5MP Front Camera

Additional information

MS9191YRUPDATE:

Total Care (TCP) for MS919 $1,495.00

Specifications

Operating System Android 7.0
Processor Samsung Exynos8895V octa-core Processor (2.3GHz Quad-core Mongoose + 1.7GHz Quad-core A53)
Memory 4GB RAM & 128GB On-board Memory
Display 9.7 inch TFT-LCD with 1536 x 2048 resolution & capacitive touchscreen
Connectivity
  • Wi-Fix2 (802.11 a/b/g/n/ac 2×2 MIMO)
  • BT v.2.1 + EDR
  • GPS
  • USB 2.0 (TWO USB HOST Type A, ONE USB mini device)
  • HDMI 2.0
  • SD Card (Support up to 256GB)
Camera (rear)
  • Rear: 16 Megapixel, Autofocus with Flashlight
  • Front: 5.0 Megapixel
Sensors Gravity Accelerometer, Ambient Light Sensor (ALS)
Audio Input/Output
  • Microphone
  • Dual Speakers
  • 3-Band 3.5 mm stereo/standard headset jack
Power and Battery
  • 15000mAh 3.8V lithium-polymer battery
  • Charging via 12V AC/DC power supply with the temperature between 0°C and 45°C
Input Voltage 12V/3A Adapter
Operating Temperature 0 to 50°C (32 to 122°F)
Storage Temperature -20 to 60°C (-4 to 140°F)
Dimensions (WxHxD) 304.4 mm (11.98″) x 227.8 mm (8.97″) x 42.5 mm (1.67″)
Weight 1.66kg (3.66lb.)

Protocols

DoIP, PLC J2497, ISO-15765, SAE-J1939, ISO-14229 UDS, SAE-J2411 Single Wire Can(GMLAN), ISO-11897-2, ISO-11897-3, SAE-J2819 (TP20), TP16, ISO-9141, ISO-14230, SAE-J2610 (Chysler SCI), UART Echo Byte, SAE-J2809 (Honda Diag-H), SAE-J2740 (GM ALDL), SAE-J1567 (CCD BUS), Ford UBP, Nissan DDL UART with Clock, BMW DS2, BMW DS1, SAE J2819 (VAG KW81), KW82, SAE J1708, SAE-J1850 PWM (Ford SCP), SAE-J1850 VPW (GM Class2)

Videos

Downloads

PDF MaxiSYS MS919 Manual Download
PDF How To: Upgrade Tablet To Download EV Software Download
PDF MaxiSYS MS919 Sales Flyer Download
PDF Total Care Program Flyer Download

What's Included

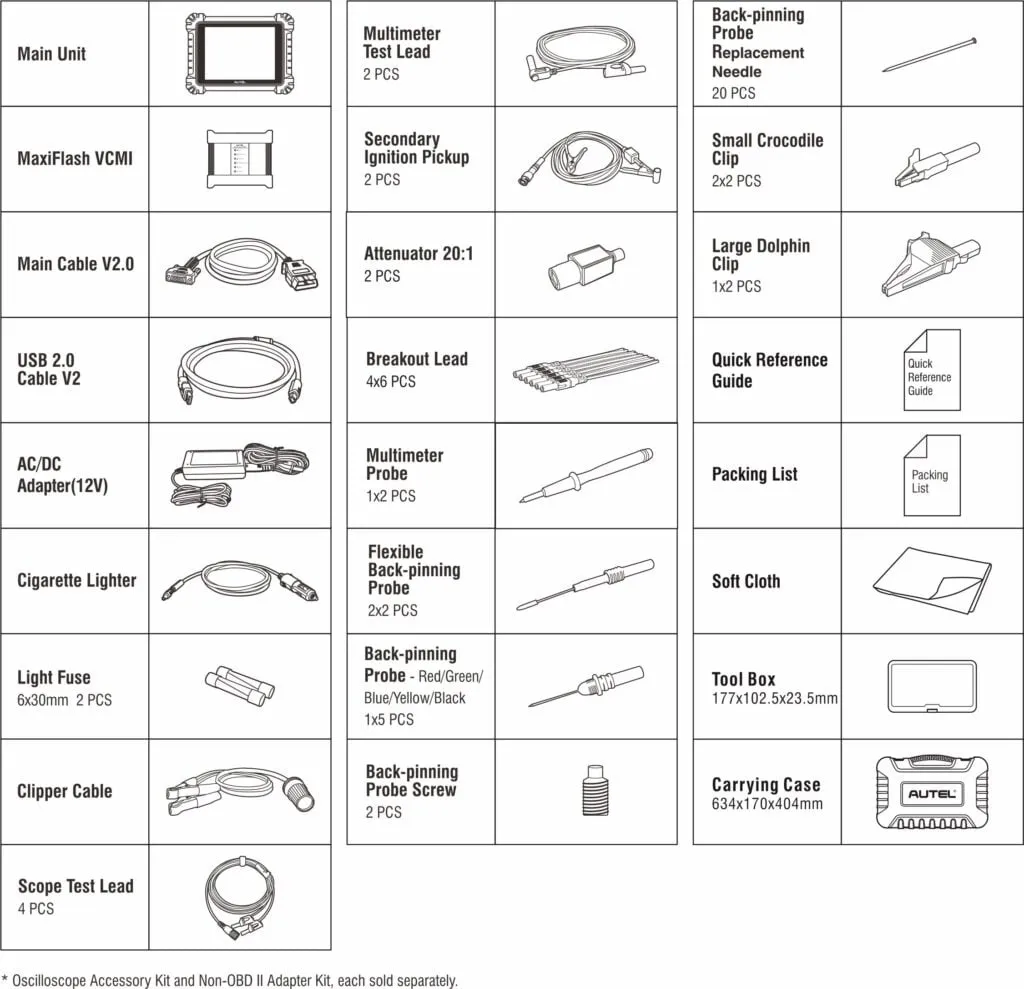

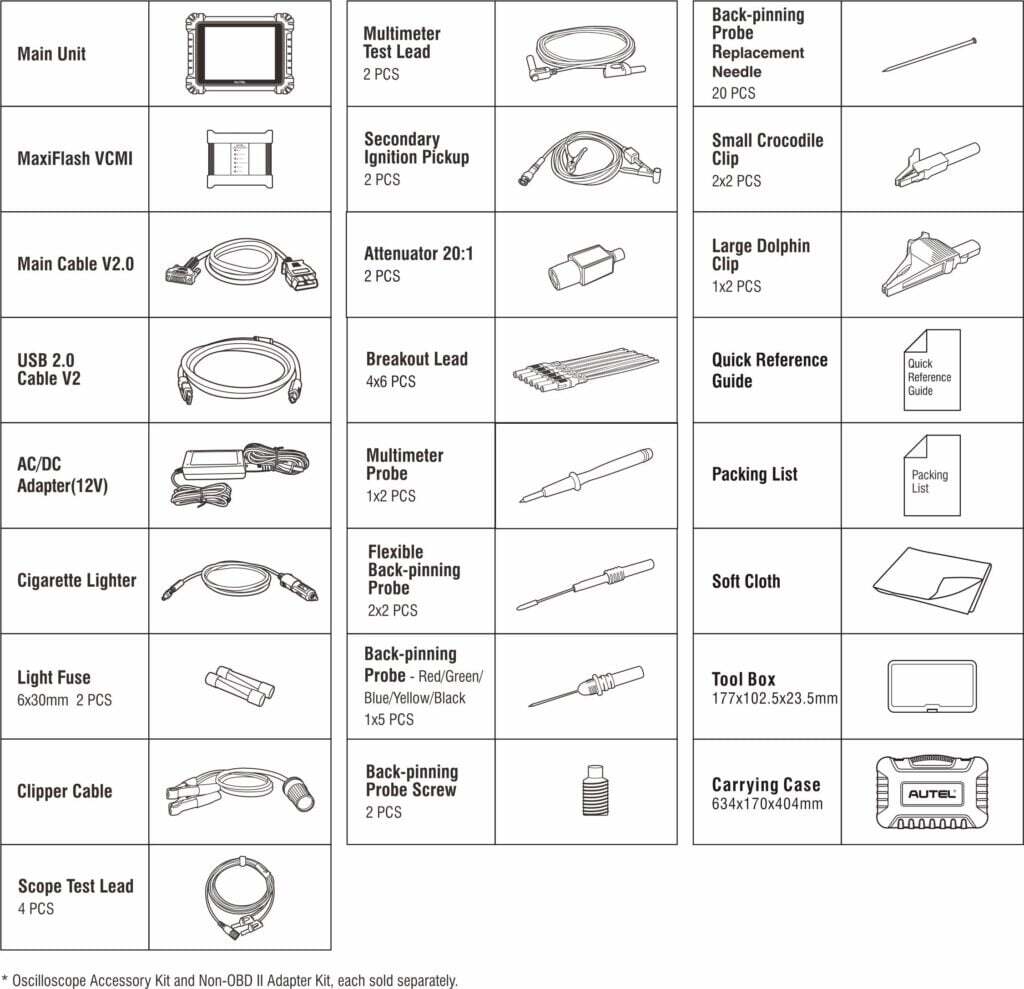

MaxiSYS MS919 Accessories

Compare Similar

MaxiSYS MS909 MaxiSYS MS919 MaxiSYS Ultra
  MaxiSYS MS909 MaxiSYS MS919 MaxiSYS Ultra
HARDWARE
Connection
Bluetooth MaxiFlash VCI
Including Latest Protocols
Bluetooth MaxiFlash VCMI
Including Latest Protocols
Bluetooth MaxiFlash VCMI
Including Latest Protocols
Screen
9.7-Inch Touchscreen
1536 x 2048 DPI / TFT-LCD Asahi Glass
9.7-Inch Touchscreen
1536 x 2048 DPI / TFT-LCD Asahi Glass
12.9-Inch Touchscreen
2732 x 2048 DPI / TFT-LCD Corelle Glass
Battery
15,000 mAh
15,000 mAh
18,000 mAh
Processor
2.2GHz + 1.8GHz
OCTA-CORE
2.2GHz + 1.8GHz
OCTA-CORE
2.2GHz + 1.8GHz
OCTA-CORE
Memory
128GB SSD / 4GB RAM
128GB SSD / 4GB RAM
256GB SSD / 4GB RAM
Camera
16MP Rear / 16MP Front
16MP Rear / 16MP Front
16MP Rear / 5MP Front
Docking Station
Included
SOFTWARE
Operating System
Android 7.0
Android 7.0
Android 7.0
Software Updates
1 Year Free
Update Via Wi-Fi
1 Year Free
Update Via Wi-Fi
1 Year Free
Update Via Wi-Fi
Automatic Detection
Auto-Vin / Auto-Scan
Scan Vin / Plate Scan
Auto-Vin / Auto-Scan
Scan Vin / Plate Scan
Auto-Vin / Auto-Scan
Scan Vin / Plate Scan
Secure Gateway Access
Authorized FCA Access
With Autoauth Account
Authorized FCA Access
With Autoauth Account
Authorized FCA Access
With Autoauth Account
License Plate Reader
Available On
Select Vehicles
Available On
Select Vehicles
Available On
Select Vehicles
Vehicle Coverage
US, Asian & European
1996 And Newer Passenger / Light Duty
Some Medium Duty
US, Asian & European
1996 And Newer Passenger / Light Duty
Some Medium Duty
US, Asian & European
1996 And Newer Passenger / Light Duty
Some Medium Duty
OBDII Test Modes
All 10 Test Modes
Live & Freeze Frame / Enhanced Mode 6
All 10 Test Modes
Live & Freeze Frame / Enhanced Mode 6
All 10 Test Modes
Live & Freeze Frame / Enhanced Mode 6
Service Resets
26 Service Features
26 Service Features
26 Service Features
Diesel PM
Reset Diesel Emissions
Light & Medium Duty Vehicles
Reset Diesel Emissions
Light & Medium Duty Vehicles
Reset Diesel Emissions
Light & Medium Duty Vehicles
System Diagnostics
Access All Modules
In all systems
Access All Modules
In all systems
Access All Modules
In all systems
Component Activations
Bi-Directional Control
Bi-Directional Control
Bi-Directional Control
Enhanced Functions
Coding Adaptations
Coding Adaptations
Coding Adaptations
ADAS Calibration
ADASUpgrade & Frame Kit*
Purchase Required
ADASUpgrade & Frame Kit*
Purchase Required
ADASUpgrade & Frame Kit*
Purchase Required
Battery Analysis
MAXIBAS Software**
MAXIBAS Software**
MAXIBAS Software**
Complete TPMS Function
Topology Module Mapping
Color-coded All System status screen
on supported vehicles
Color-coded All System status screen
on supported vehicles
Color-coded All System status screen
on supported vehicles
Oscilloscope
VCMI 5-in-one device: VCI multimeter, Waveform Generator, CAN BUS tester
VCMI 5-in-one device:Also includes VCI, J2534 Multimeter, Waveform Generator, CAN BUS tester
Split Screen Display
View multiple functions at once
