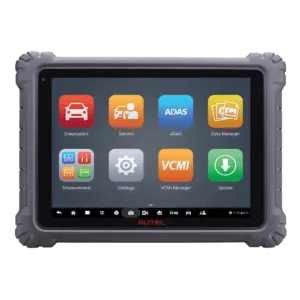

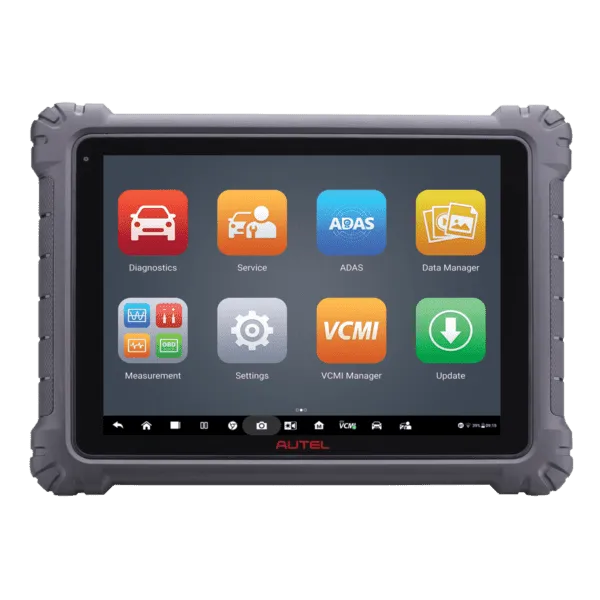

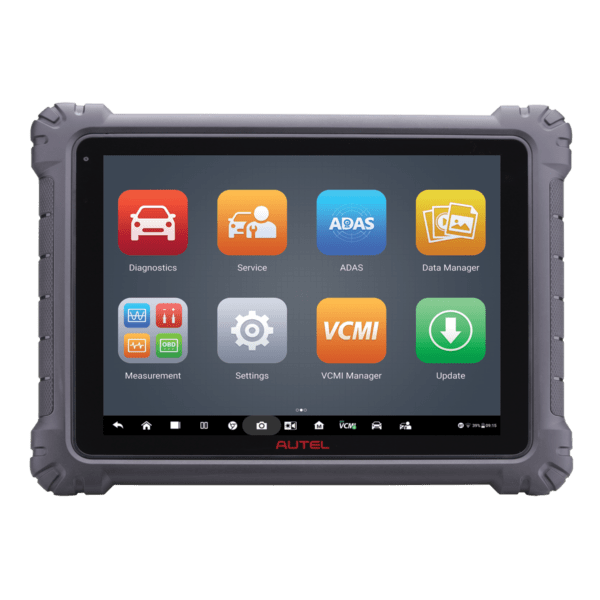

MaxiSYS MSUltra
Advanced Diagnostic Tablet

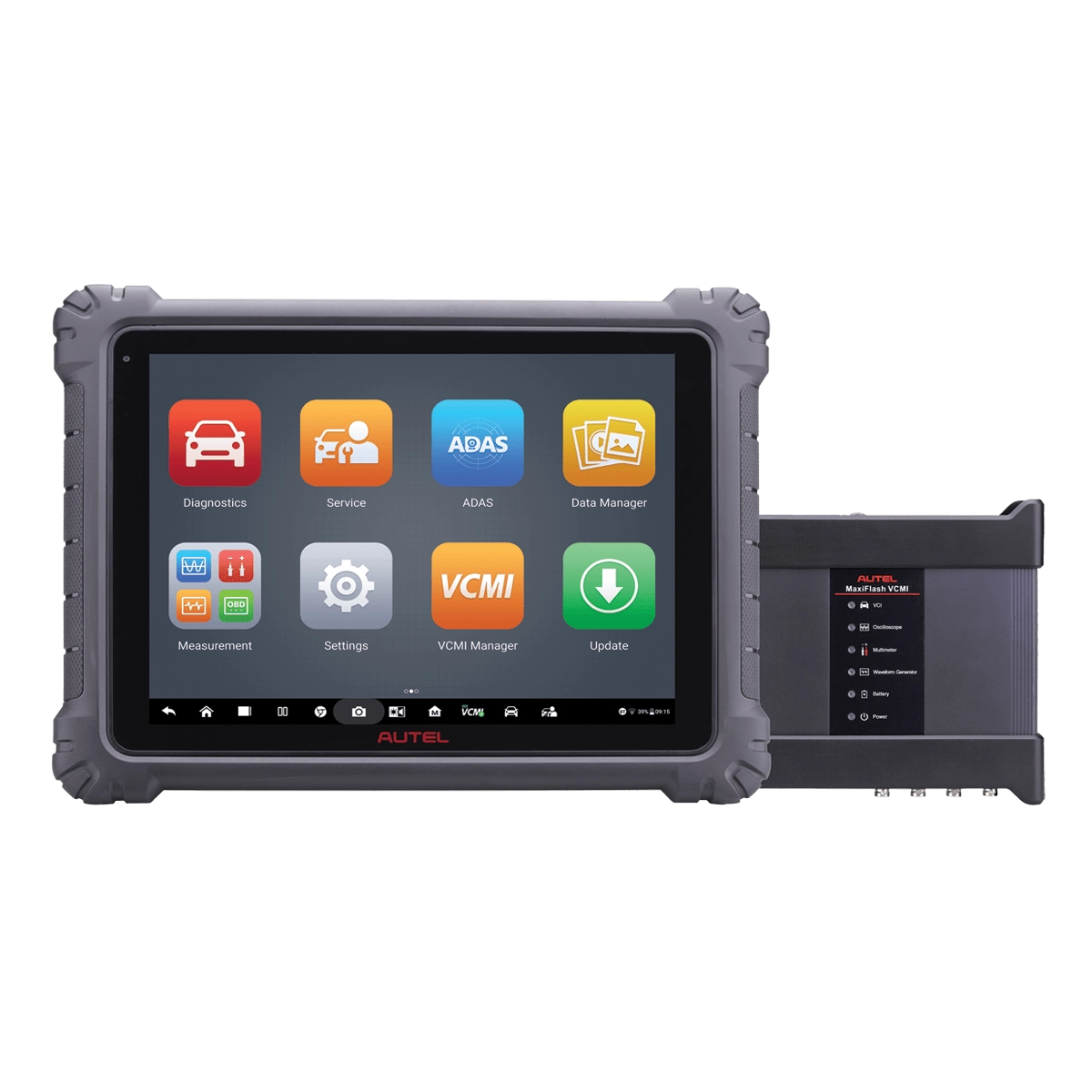

The MaxiSYS Ultra is Autel’s most ambitious diagnostics tablet to date, featuring a 12.7-inch touchscreen Android-based tablet powered by an Octa-core processor (2.3GHz Quad + 1.7GHz Quad), substantial 256GB built-in memory and features the MaxiFlash VCMI, a 5-in-1 communication and testing tool providing wireless vehicle communications between the vehicle and tablet and supporting the latest DoIP, D-PDU and Mega CAN vehicle communication protocols. The VCMI also functions as a 4-channel oscilloscope, waveform generator, multimeter and CanBUS tester. The Ultra offers the most advanced approach to vehicle diagnostics with its dynamic topology module mapping for supported vehicles and Oscilloscope preset guides, tests and waveform library. The Ultra features a rechargeable Lithium battery proving 8 hours of continues use, a convenient docking station and front and rear cameras.
| MSULTRA1YRUPDATE: | Total Care (TCP) for MSULTRA $1,695.00 |
|---|
- Large 12.7-inch (2732 x 2048) touchscreen / Android 7.0
- 2.3GHz + 1.7GHz Octa-core Processor / 256GB Memory
- Advanced VCMI 5-In-1 Device: VCI, Oscilloscope, Multimeter, Waveform Generator, CAN BUS Check
- Oscilloscope Preset Guided & Component Tests / Waveform Library
- New VCI Protocols: D-PDU, DoIP/CAN FD, Mega CAN
- Split Screen Multi-Application Function / Dual Wi-Fi Connection

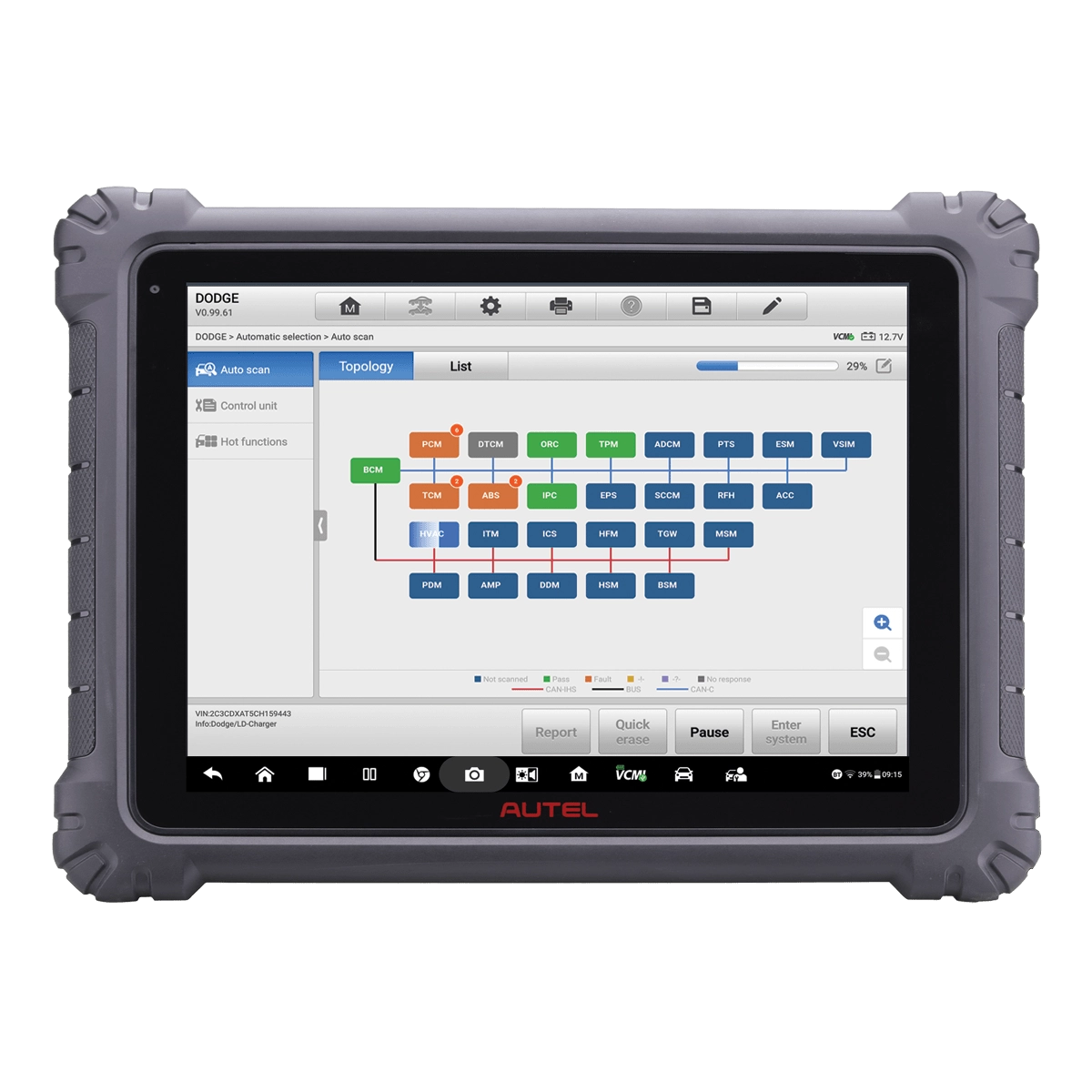

- Topology Module Mapping: Color Coded All System Status Screen (on supported vehicles)
- License Plate Reader
- ScanVIN: Barcode or Text Recognition with Camera
- Secure Gateway Access: Authorized FCA SGM Access with AutoAuth Account

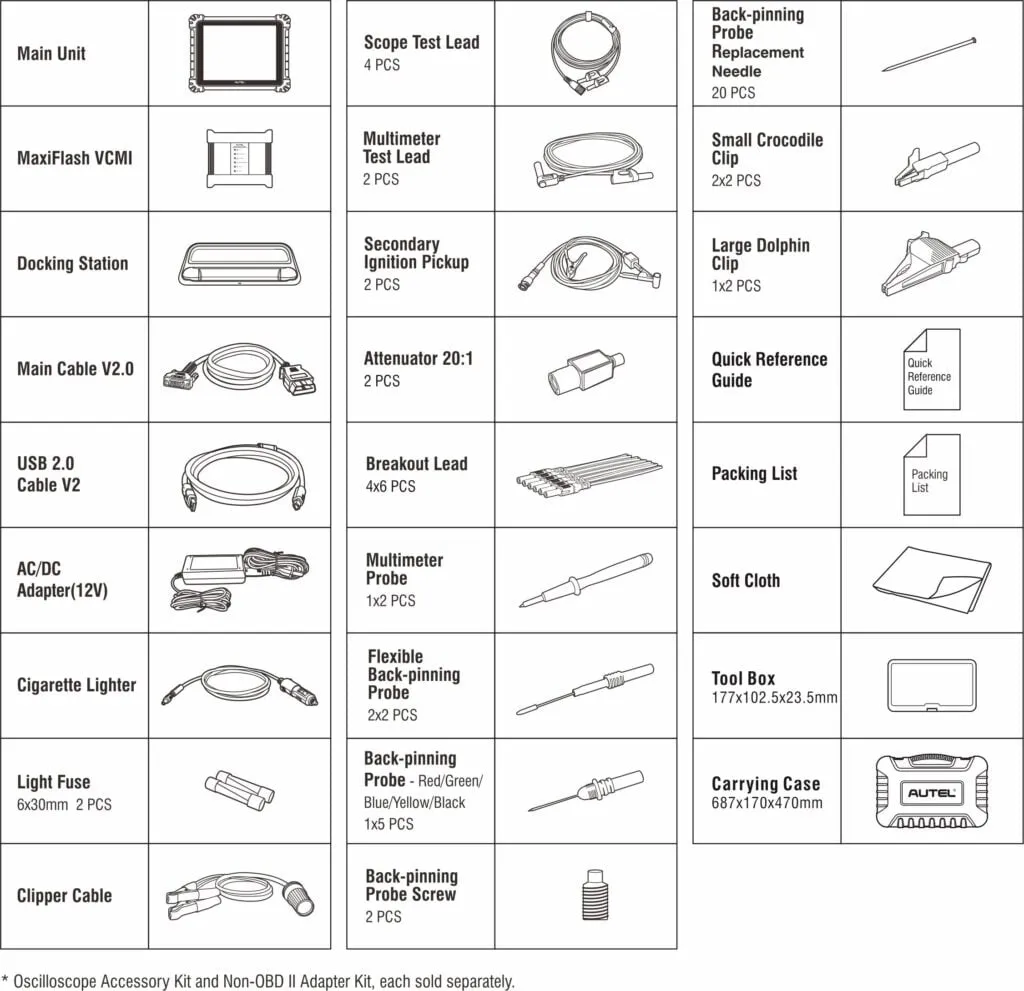

- Includes Docking Station, Cables, Scope Connectors, Carrying Case, 1YR Warranty & Software Subscription
- Enhanced Diagnostic Reports: PreSCAN & PostSCAN
- 18000mAh - 8hrs Continuous Use / 16MP Rear Camera & 5MP Front Camera
Additional information
| MSULTRA1YRUPDATE: | Total Care (TCP) for MSULTRA $1,695.00 |
|---|
Specifications
| Operating System | Android 7.0 |
| Processor | Samsung Exynos8895V octa-core Processor (2.3GHz Quad-core Mongoose + 1.7GHz Quad-core A53) |
| Memory | 4GB RAM & 256GB On-board Memory |
| Display | 12.7 inch with 2732 x 2048 resolution & capacitive touchscreen |
| Connectivity |
|
| Camera |
|
| Sensors | Gravity Accelerometer, Ambient Light Sensor (ALS) |
| Audio Input/Output |
|
| Power and Battery |
|
| Input Voltage | 12V/3A Adapter |
| Operating Temp. | 0 to 50°C (32 to 122°F) |
| Storage Temperature | -10°C to 60°C (14°F to 140°F) |
| Dimensions (WxHxD) | 366.5 mm (14.43″) x 280.9 mm (11.06″) x 34 mm (1.34″) |
| Weight | 2.18kg (4.81 lb.) |
|
Protocols |
DoIP, PLC J2497, ISO-15765, SAE-J1939, ISO-14229 UDS, SAE-J2411 Single Wire Can (GMLAN), ISO-11898-2, ISO-11898-3, SAE-J2819 (TP20), TP16, ISO-9141, ISO-14230, SAE-J2610 (Chrysler SCI), UART Echo Byte, SAE-J2809 (Honda Diag-H), SAE-J2740 (GM ALDL), SAE-J1567 (CCD BUS), Ford UBP, Nissan DDL UART with Clock, BMW DS2, BMW DS1, SAE J2819 (VAG KW81), KW82, SAE J1708, SAE-J1850 PWM (Ford SCP), SAE-J1850 VPW (GM Class2) |
Videos

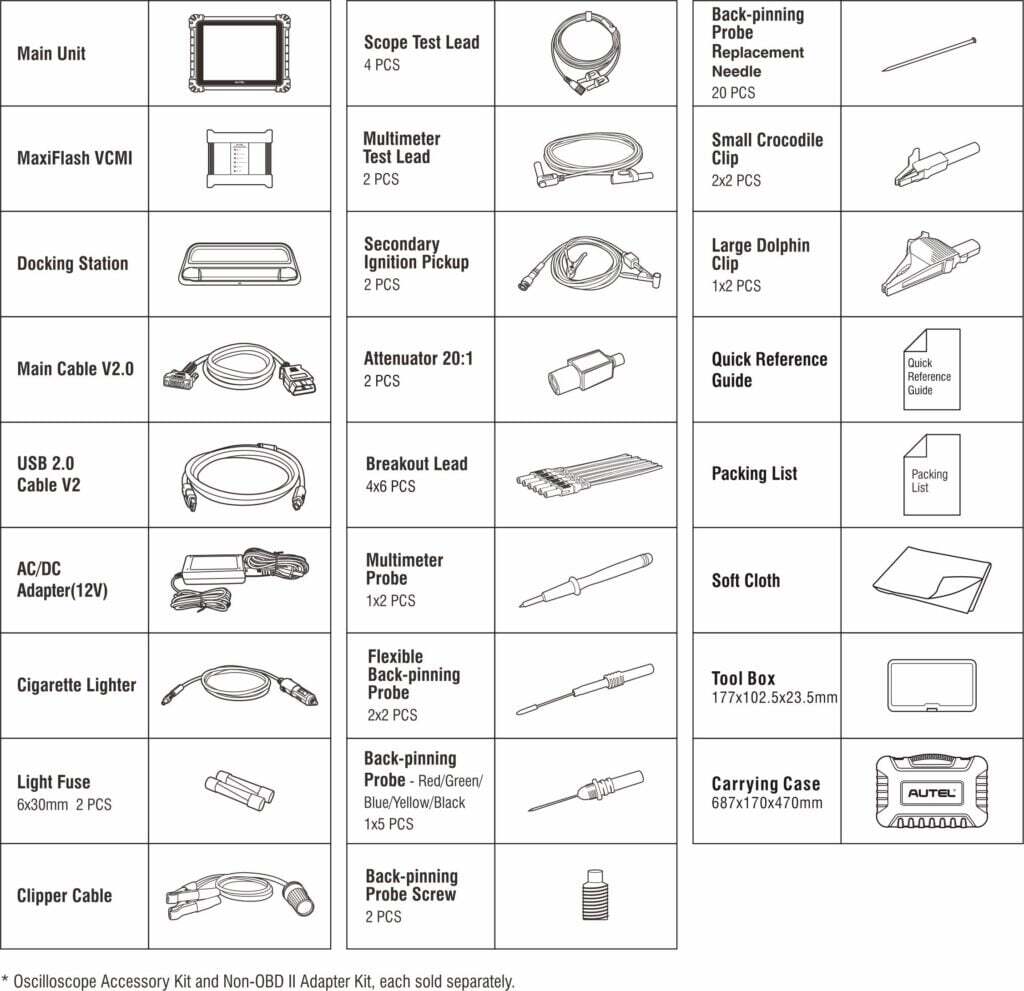

What's Included
Compare Similar

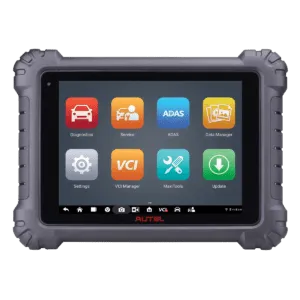

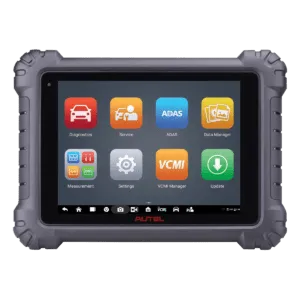

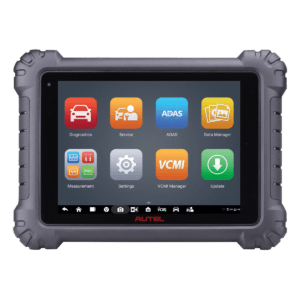

| MaxiSYS MS909 | MaxiSYS MS919 | MaxiSYS Ultra | |
|---|---|---|---|
 |
 |
 |
|
| HARDWARE | |||
| Connection |
Bluetooth MaxiFlash VCI
Including Latest Protocols
|
Bluetooth MaxiFlash VCMI
Including Latest Protocols
|
Bluetooth MaxiFlash VCMI
Including Latest Protocols
|
| Screen |
9.7-Inch Touchscreen
1536 x 2048 DPI / TFT-LCD Asahi Glass
|
9.7-Inch Touchscreen
1536 x 2048 DPI / TFT-LCD Asahi Glass
|
12.7-Inch Touchscreen
2732 x 2048 TFT-LCD Capacitive Touchscreen
|
| Battery |
15,000 mAh
|
15,000 mAh
|
18,000 mAh
|
| Processor |
2.2GHz + 1.8GHz
OCTA-CORE
|
2.2GHz + 1.8GHz
OCTA-CORE
|
2.2GHz + 1.8GHz
OCTA-CORE
|
| Memory |
128GB SSD / 4GB RAM
|
128GB SSD / 4GB RAM
|
256GB SSD / 4GB RAM
|
| Camera |
16MP Rear / 16MP Front
|
16MP Rear / 16MP Front
|
16MP Rear / 5MP Front
|
| Docking Station |
—
|
—
|
Included
|
| SOFTWARE | |||
| Operating System |
Android 10.0
|
Android 10.0
|
Android 7.0
|
| Software Updates |
1 Year Free
Update Via Wi-Fi
|
1 Year Free
Update Via Wi-Fi
|
1 Year Free
Update Via Wi-Fi
|
| Automatic Detection |
Auto-Vin / Auto-Scan
Scan Vin / Plate Scan |
Auto-Vin / Auto-Scan
Scan Vin / Plate Scan |
Auto-Vin / Auto-Scan
Scan Vin / Plate Scan |
| Secure Gateway Access |
Authorized FCA Access
With Autoauth Account
|
Authorized FCA Access
With Autoauth Account
|
Authorized FCA Access
With Autoauth Account
|
| License Plate Reader |
Available On
Select Vehicles |
Available On
Select Vehicles |
Available On
Select Vehicles |
| Vehicle Coverage |
US, Asian & European
1996 And Newer Passenger / Light Duty
Some Medium Duty |
US, Asian & European
1996 And Newer Passenger / Light Duty
Some Medium Duty |
US, Asian & European
1996 And Newer Passenger / Light Duty
Some Medium Duty |
| OBDII Test Modes |
All 10 Test Modes
Live & Freeze Frame / Enhanced Mode 6
|
All 10 Test Modes
Live & Freeze Frame / Enhanced Mode 6
|
All 10 Test Modes
Live & Freeze Frame / Enhanced Mode 6
|
| Service Resets |
26 Service Features
|
26 Service Features
|
26 Service Features
|
| Diesel PM |
Reset Diesel Emissions
Light & Medium Duty Vehicles
|
Reset Diesel Emissions
Light & Medium Duty Vehicles
|
Reset Diesel Emissions
Light & Medium Duty Vehicles
|
| System Diagnostics |
Access All Modules
In all systems
|
Access All Modules
In all systems
|
Access All Modules
In all systems
|
| Component Activations |
Bi-Directional Control
|
Bi-Directional Control
|
Bi-Directional Control
|
| Enhanced Functions |
Coding Adaptations
|
Coding Adaptations
|
Coding Adaptations
|
| ADAS Calibration |
ADASUpgrade & Frame Kit*
Purchase Required
|
ADASUpgrade & Frame Kit*
Purchase Required
|
ADASUpgrade & Frame Kit*
Purchase Required
|
| Battery Analysis |
MAXIBAS Software**
|
MAXIBAS Software**
|
MAXIBAS Software**
|
| Topology Module Mapping |
Color-coded All System status screen
on supported vehicles
|
Color-coded All System status screen
on supported vehicles
|
Color-coded All System status screen
on supported vehicles
|
| Oscilloscope |
—
|
VCMI 5-in-one device: VCI multimeter, Waveform Generator, CAN BUS tester
|
VCMI 5-in-one device:Also includes VCI, J2534 Multimeter, Waveform Generator, CAN BUS tester
|
| Split Screen Display |
—
|
—
|
View multiple functions at once
|
