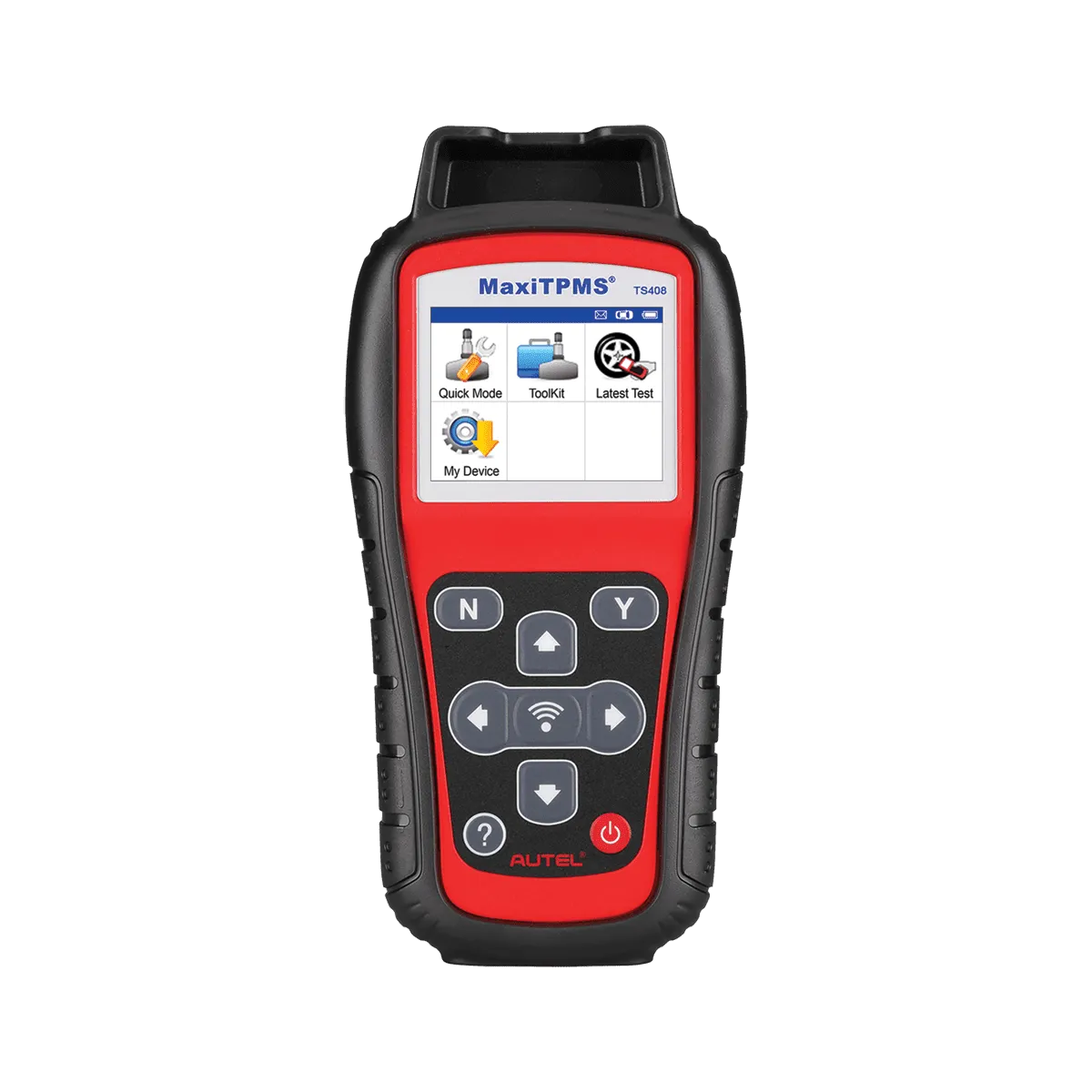

MaxiTPMS TS408

TPMS Service Tool

The MaxiTPMS TS408 is an easy-to-use handheld TPMS service tool that can activate and read sensor IDs, battery life and tire pressure and temperature. The TS408 can also program MX-Sensors to replace OE sensors and can display on-screen relearn procedures for all TPMS-equipped vehicles. The TS408 is designed for quick TPMS serving of all TPMS equipped domestic, Asian and European vehicles. The user simply selects the vehicle make, model and year and then is prompted to activate sensors in order. Depending on the vehicle, the tool will display tire pressure and temperature, the sensor ID and battery life. The TS408 can also program MX-Sensors to replace a damaged or no-longer functioning sensor. Using the TS408, the technician can program up to 16 MX-Sensors at one time. Original sensor IDs can be cloned as long as the original sensor ID can be read. MX-Sensors can be programmed to replace 98 percent of the TPMS sensors on the road today. The TS408 also displays every vehicle’s relearn instructions in detail. Software updates are free for the life of this tool ensuring the vehicle coverage remains current. The TS408 comes with a 1-year warranty. Includes free technical support.

Availability:

This product has been discontinued.

SKU: TS408 Category: Tag:
  • Read and Activate All Known Sensors
  • Display Vehicle-Specific Relearn Procedures

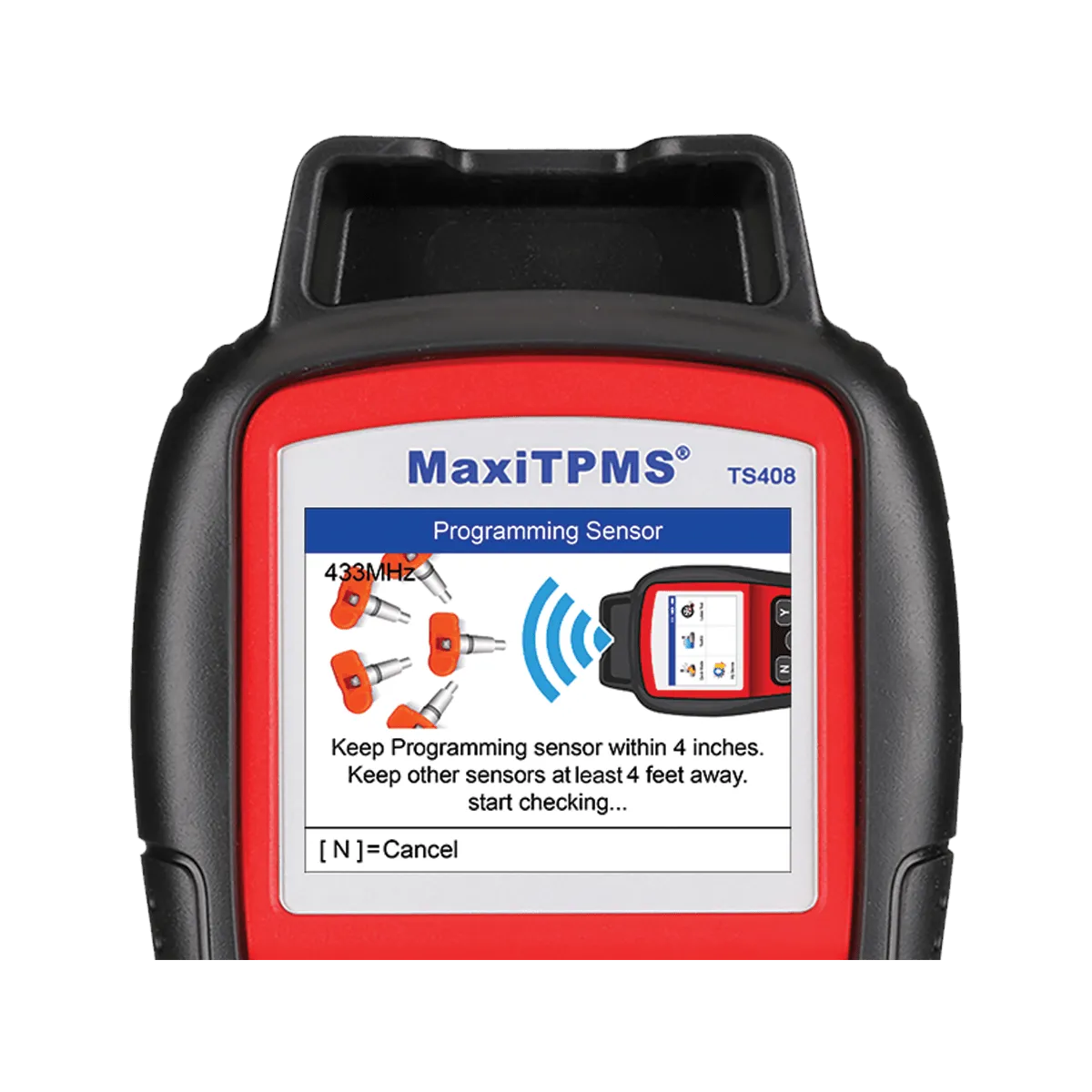

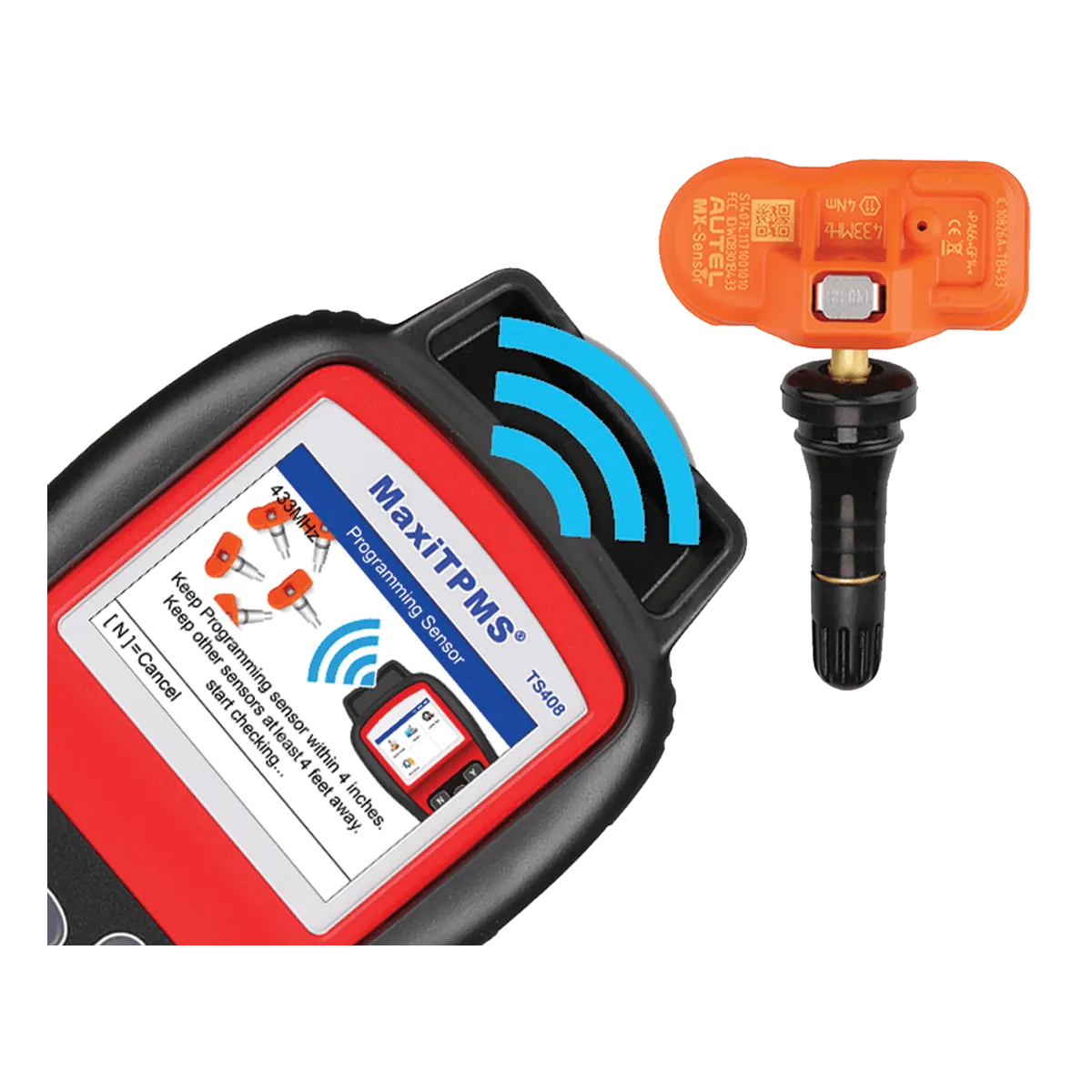

  • 2 Programming Options: MX-Sensors Only
  • Key Fob Signal Test
  • FREE Lifetime Software (lifetime of tool) & 1Yr Warranty
  • Display Sensor ID, Battery Condition (on select sensors) and Psi
  • 2.3" Color Display 320x240
  • Software Updates via PC / Easy-To-Use Navigation
  • 3200mAh Lithium-polymer Battery

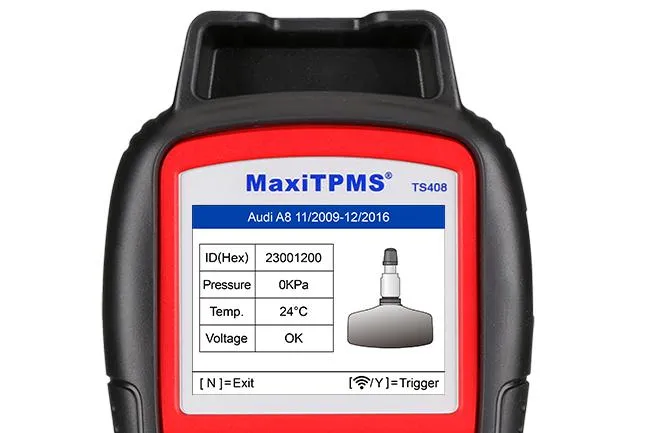

Activate & Read Data

TS408 is designed to activate all known TPMS sensors. When you choose the right vehicle make, model and year, TS408 can easily activate all the sensors and read the sensor ID, pressure, temperature and battery condition.

Activate Sensors

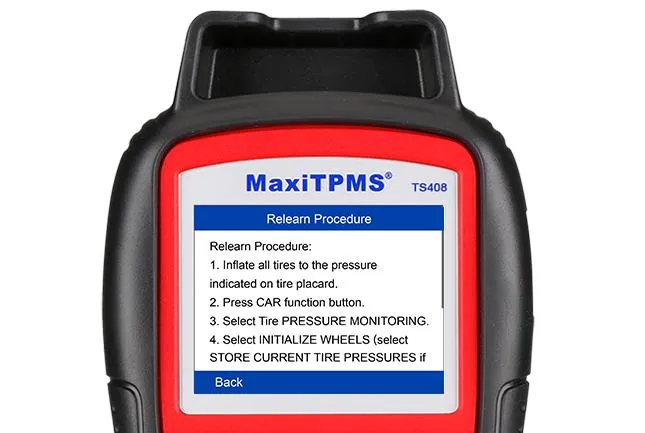

On-tool Relearn Procedure

TS408 provides on-tool relearn procedure for every TPMS equipped U.S., Asian and European vehicle. No need for relearn charts or Internet lookups.

Relearn Procedure

Additional information

Availability:

This product has been discontinued.

Specifications

Display TFT color display (320 x 240 dpi)
Power 3.7 V Li-polymer battery; 3200 mAh
Operating Temperature 0°C to 50°C (32°F to 122°F)
Storage Temperature -20°C to 70°C (-4°F to 158°F)
Dimensions (LxWxH) 215 mm (8.46") / 105 mm (4.13") / 37 mm (1.46")
Weight 0.38 kg (0.84 lb.)
Connectivity Mini USB 2.0 x 1
Warranty 1 year
Software Update Free

Videos

Downloads

PDF MaxiTPMS TS408 User Manual Download
PDF MaxiTPMS TS408 Introduction Download
PDF MaxiTPMS TS408 Function List Download
PDF MaxiTPMS TS408 Update Guide Download

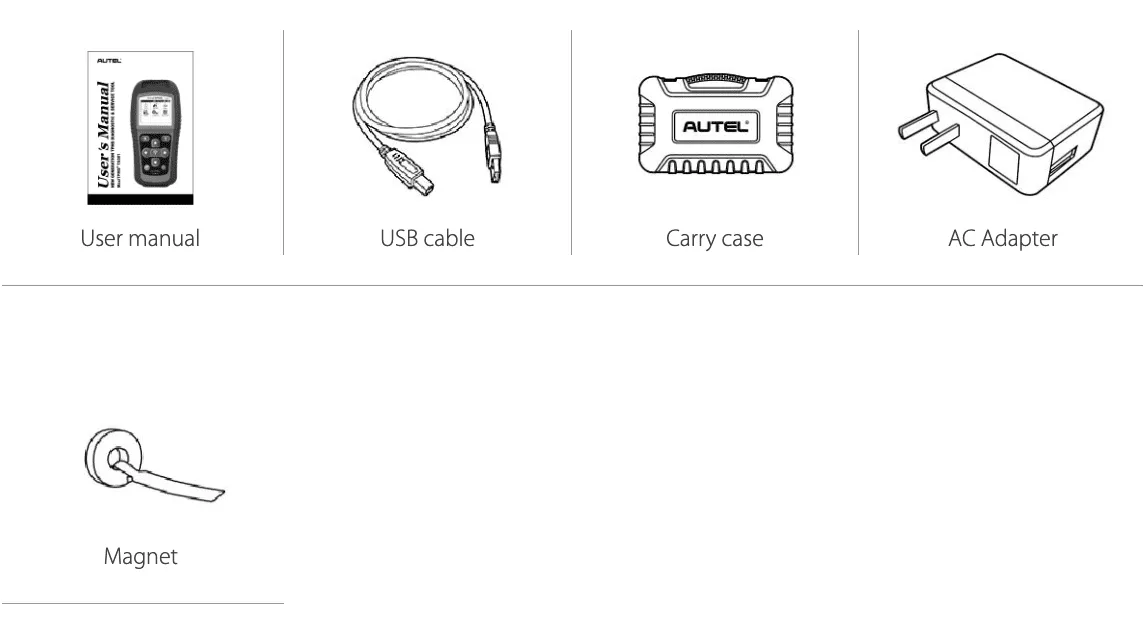

What's Included

MaxiTPMS TS408 Accessories

Compare Similar

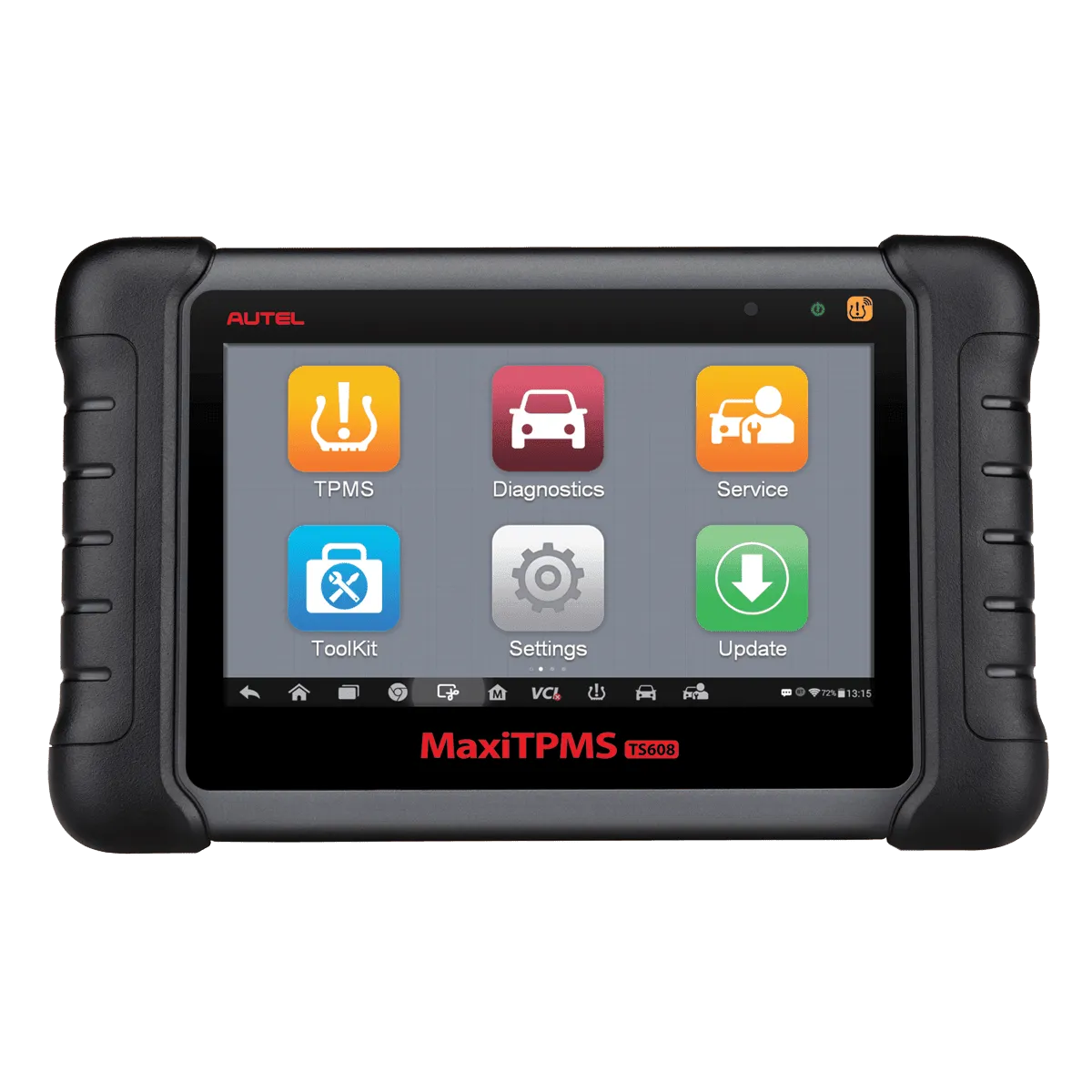

MaxiTPMS TS408 MaxiTPMS TS508 MaxiTPMS TS608
  MaxiTPMS TS408 MaxiTPMS TS508 MaxiTPMS TS608 Tablet
HARDWARE
Connection
Mini USB 2.0
OBDII Cable
Bluetooth MaxiVCI-Mini
Screen
2.3-Inch Display
320 x 240 DPI / LED Color Screen
7-Inch Touchscreen
1024 x 600 DPI / LED Color Screen
Battery
3,200 mAh
3,200 mAh
5,000 mAh
Processor
1.6GHz
QUAD-CORE
Memory
32GB SSD / 1GB RAM
(up to) 32GB micro SD card not included
Camera
SOFTWARE
Operating System
Easy tool navigation
ANDROID 4.4.2
Software Updates
FREE for life of tool
FREE for life of tool
1 Year Free
Update Via Wi-Fi
Automatic Detection
Auto-Vin / Auto-Scan
Service Resets
17 Service functions
Standard Features
System Diagnostics
All Systems Diagnostics
all modules in all systems
Battery Analysis
TPMS Sensor
TPMS Diagnostics
TPMS Status Screen
Enhanced
TPMS Status Screen
Read/Activate/Relearn
All known sensor brands
All known sensor brands
Programming Methods
4 Methods
MX-Sensors only
4 Methods
MX-Sensors only
Relearn Procedures
OBDII Relearn
With on-tool procedures
OBDII Relearn
With on-tool procedures
Print Sensor Data
USB cord to PC
Wi-Fi to PC
MaxiSYS System Suite
Remote support & data logging
TPMS Mode Options
Quick or Advance
2 Modes TPMS service
Compatible with TBE200
Tire Registration
