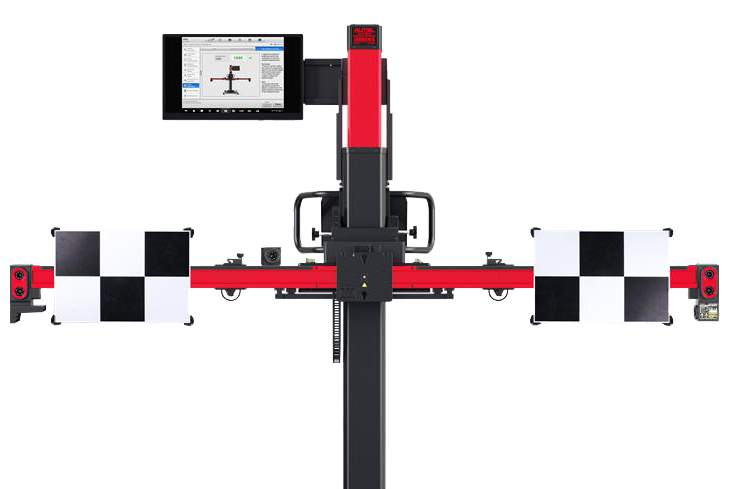

The MaxiSYS IA900WA Wheel Alignment and ADAS calibration frame enables the performance of four-wheel alignment and ADAS component calibration. Software includes Illustrated alignment instructions, live readings, required tools, and adjustment locations display on included 24” touchscreen screen. Alignment coverage for U.S., Asian and European vehicles, 1996 and newer.
Six high-resolution positioning and tracking cameras in frame automatically monitor vehicle height on shop lift. Robotic frame movement for efficient use and alignment reading accuracy to 0.02 degrees for precise alignments. Includes steering wheel lock and wheel chocks. One-year limited warranty.
IA900 Wheel Alignment + ADAS Packages
| Autel ADAS Packages include: | IA900WA Frame Stationary |
MaxiSYS Tablet & MaxiFLASH VCI |
ADAS Software |
LDW | AVM | BSD | ACC | LIDAR | NVS | RCW | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
IA900WA PART NO. IA900WA The Ultimate for Calibration Capabilities |
 |
— | — | — | — | — | — | — | — | — |
 |
IA900WAT PART NO. IA900WAT The Ultimate for Calibration Capabilities |
|
 Ultra ADAS |
 |
— | — | — | — | — | — | — |
 |
IA900LDW PART NO. IA900LDW Expands Lane Departure Warning |
|
— | — |  |
— | — | — | — | — | — |
 |
IA900LDWT PART NO. IA900LDWT Expands Lane Departure Warning |
|
Ultra ADAS |
|
|
— | — | — | — | — | — |
 |
IA900AS PART NO. IA900AS The Ultimate for Calibration Capabilities |
|
— | — | |
 |
 |
 |
 |
 |
 |
 |
IA900AST PART NO. IA900AST The Ultimate for Calibration Capabilities |
|
Ultra ADAS |
|
|
|
|
|
|
|
|
- Frame capable of performing 4-Wheel alignment and ADAS calibration
- Six high-resolution positioning and tracking cameras in frame
- Includes 24” touchscreen display that attaches to frame unit
- MaxiSYS software interface monitors and displays alignment measurements
- Cameras automatically track vehicle height on shop lift
- Robotic frame movement
- Alignment coverage includes U.S., Asian and European vehicles, 1996 and newer
- Illustrated alignment instructions, live readings, required tools and adjustment locations display on a single screen
- Includes four-wheel clamps with camera targets, steering wheel lock and wheel chocks
- One-year warranty
 |
MaxiSYS Intelligent ADAS IA900WA User Manual | Download |
|
MaxiSYS IA900WA – Alignments Without Limits Brochure | Download |
|
ADASWAUPGRADE Expansion Package | Download |
|
MaxiSYS IA900WA All Systems Brochure | Download |
|
MaxiSYS IA900WA Brochure | Download |
|
MSULTRAADAS Expansion Package | Download |
|
MaxiSYS IA900WA Brochure (French) | Download |
|
ADAS Comparison Chart | Download |
Wheel Clamp 4x
Distance Target 1x
Wheel Target 4x
Steering Wheel Lock 1x
Wheel Chock 2x
Brake Lock 1x
A Streamlined Single System & Workflow
The IA900 frame performs both wheel alignment and ADAS calibration and if designed to improve shop efficiency and profitability. Built-in cameras automatically track height of wheel targets on lift for streamlined wheel alignment. The industry’s fastest and most accurate frame placement in as little as a minute and step-by-step illustrated full-color instructions walk the user through the ADAS calibration process.
Advanced
Diagnostics
Wheel
Alignment
ADAS
Calibration
Advanced Wheel Alignment & Measurement Data
Go Beyond Basic Camber, Caster, and Toe and visualize all measurements, including detailed thrust angle, SAI, toe out on turns, and more. Diagnose issues with frame alignment, engine cradle alignment diagnosis, bent parts, loose parts, and more.
All Wheel Alignment Measurements
Used to diagnose issues with frame alignment, engine cradle alignment diagnosis,
bent parts, loose parts, and more.

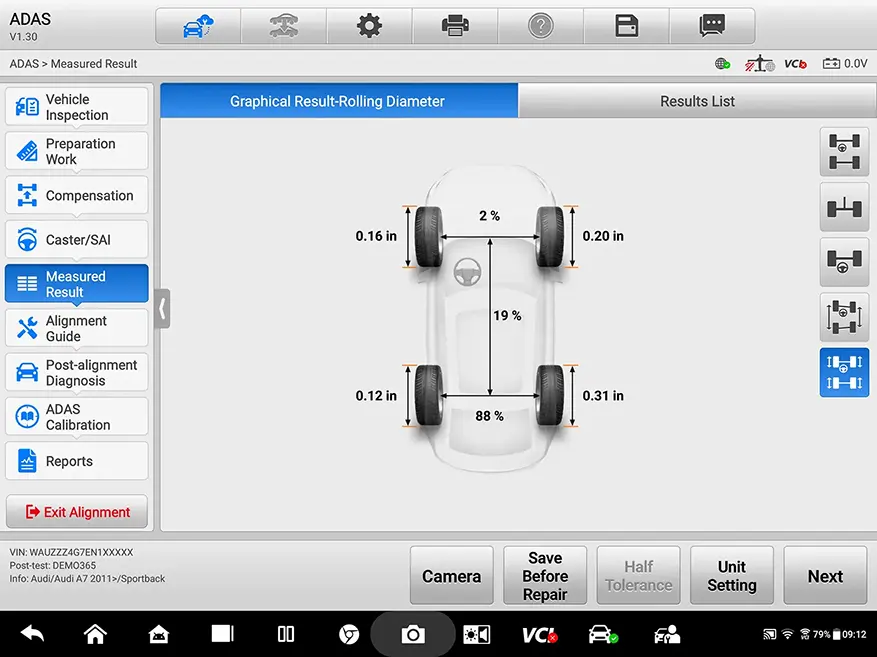

Tire Diameter
Used to diagnose a pulling condition caused by tire issues.

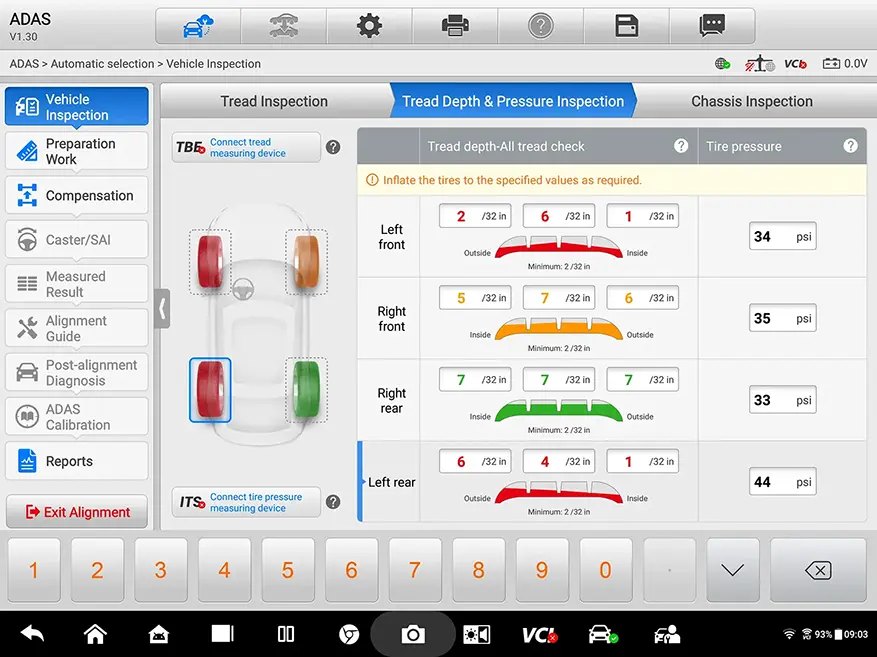

Tread Depth & Tire Pressure

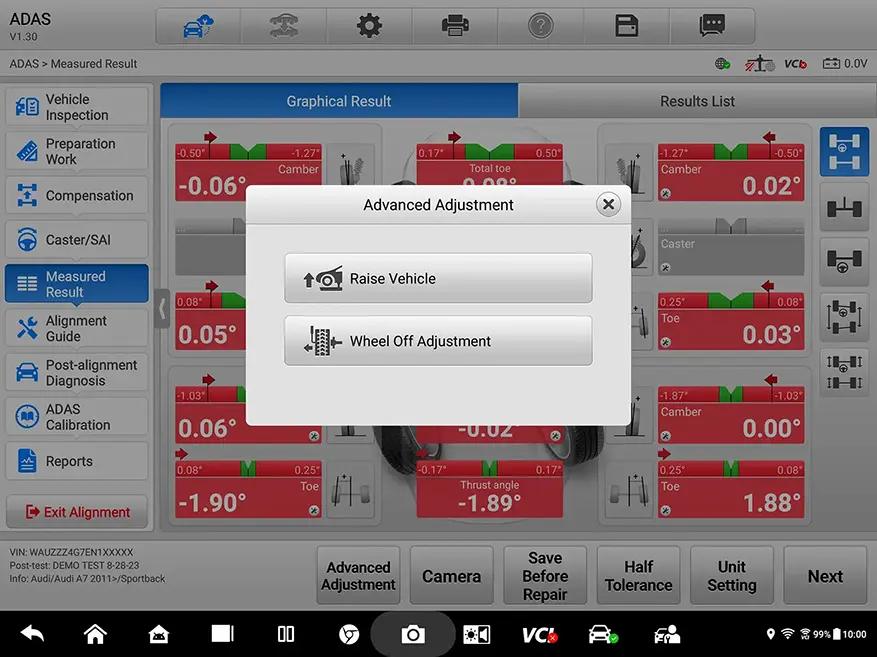

Wheel Off & Raised Adjustments
Wheel off is used on vehicles where the wheel is needed to be removed to access adjustments for alignment. Raised vehicle adjustment is used when vehicle is too long for lift and you can raise vehicle to perform a rolling compensation to get alignment readings.

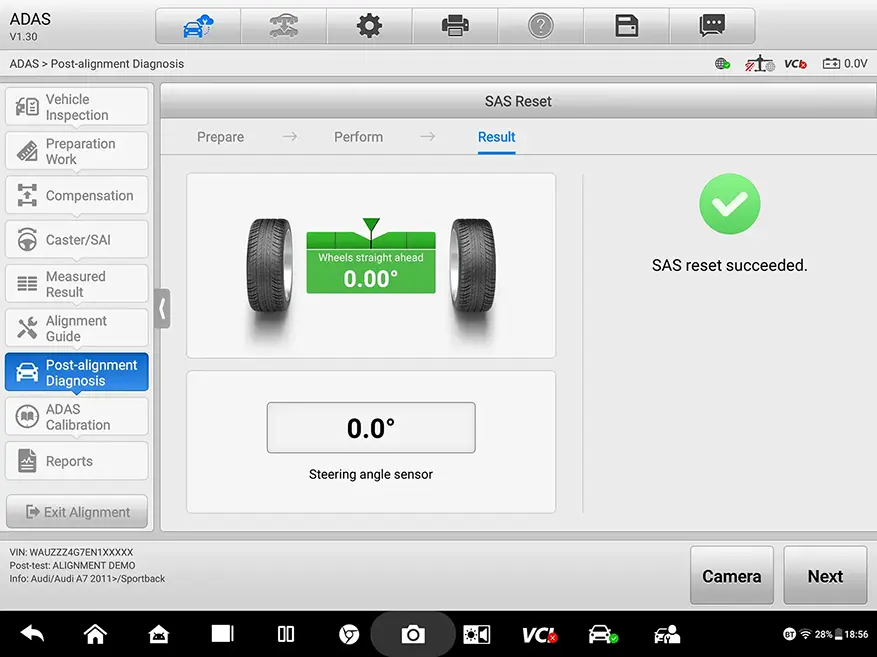

Steering Angle Relearn

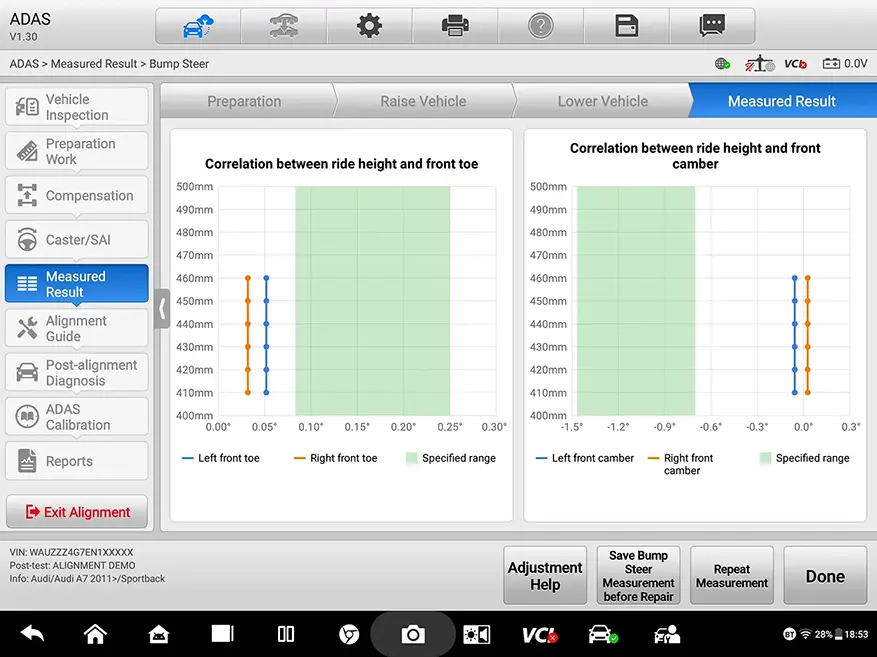

Bump Steer Diagnosis
Used to diagnose a bump steer condition which is when vehicle becomes loose
in steering when going over bumps.
Bump Steer Definition
This info is located in tool to ensure Technicians understand what the alignment data is and means.
This is one of many the tool defines for user.

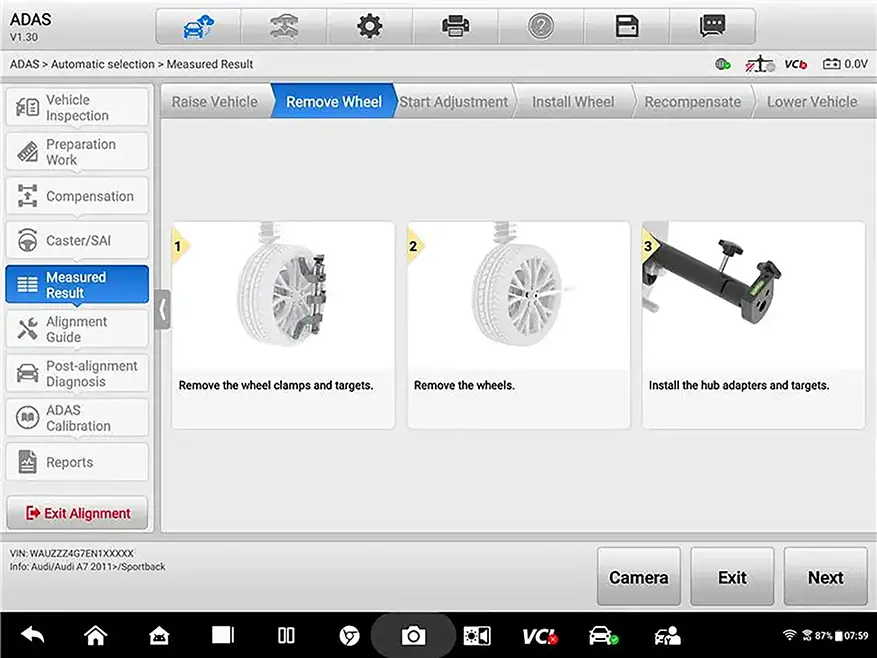

Wheel Off Tool
Used when wheel is needed to be removed for adjustments.

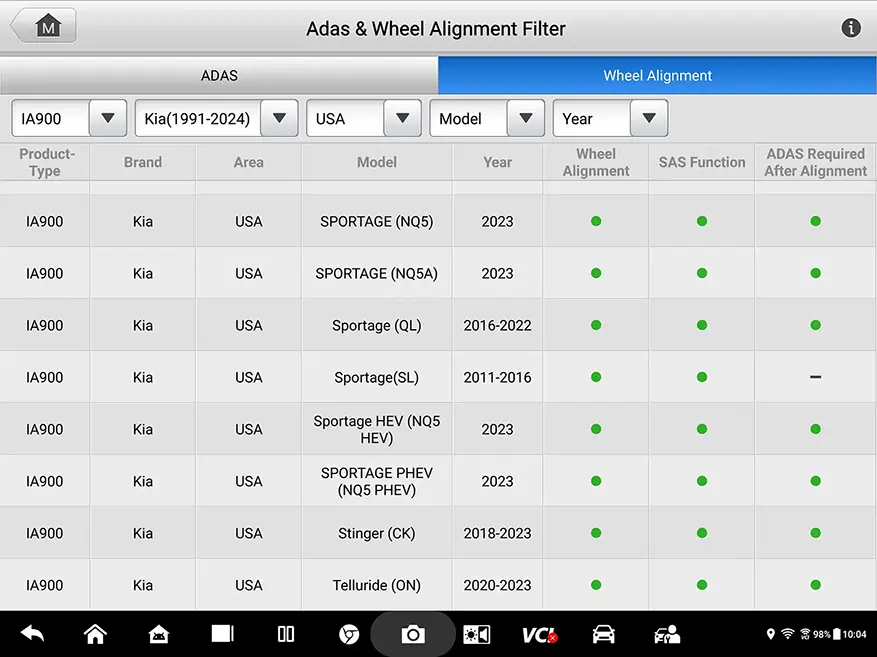

ADAS Filter on Autel Scan Tool

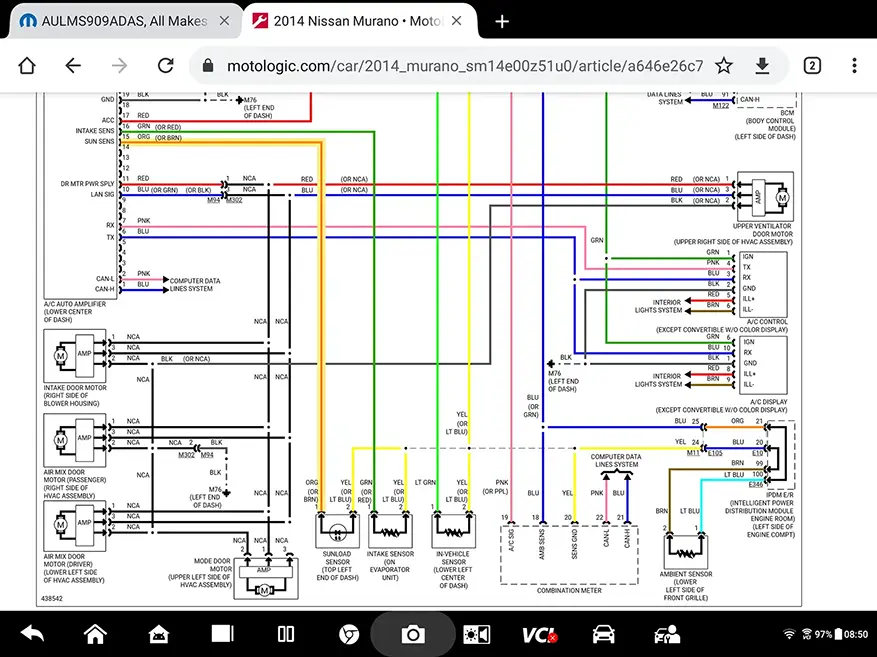

Service Info by Webpage on Autel Tool

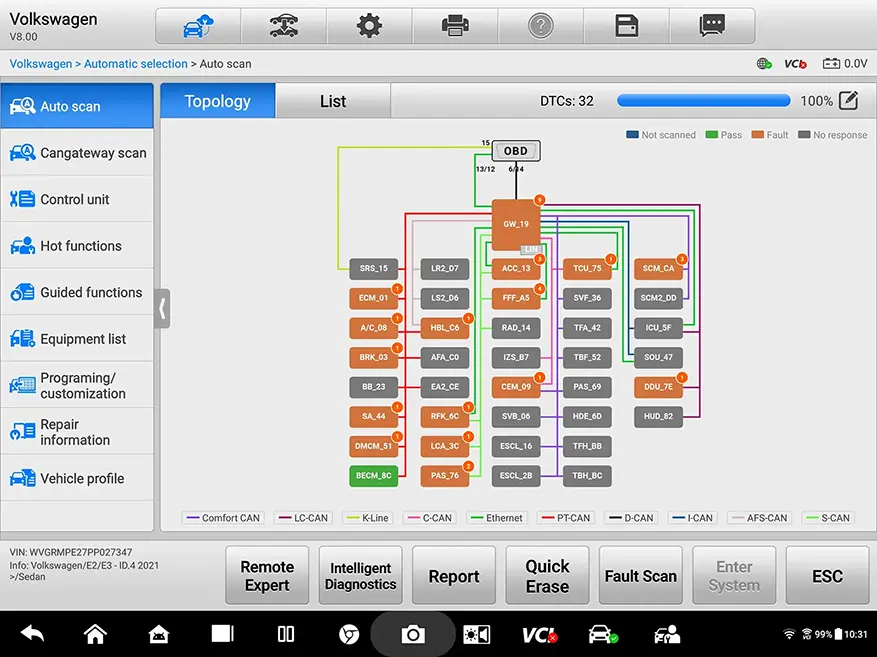

Network Topology
Used to see a visual of all module health on vehicle. If codes are present, then tool indicates issue in this module. Topology screen pops up right after a pre-scan of vehicle
and next step is to perform an alignment quick check.

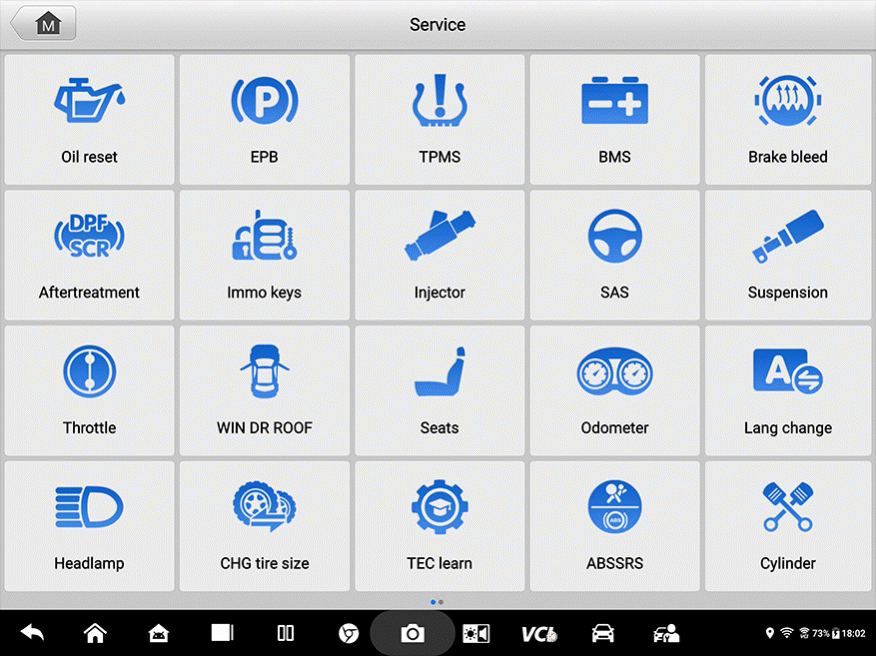

Relearn procedures for multiple systems. This is needed in a variety of situations from replacement of component to erasing previous module learned data after a calibration or reset.

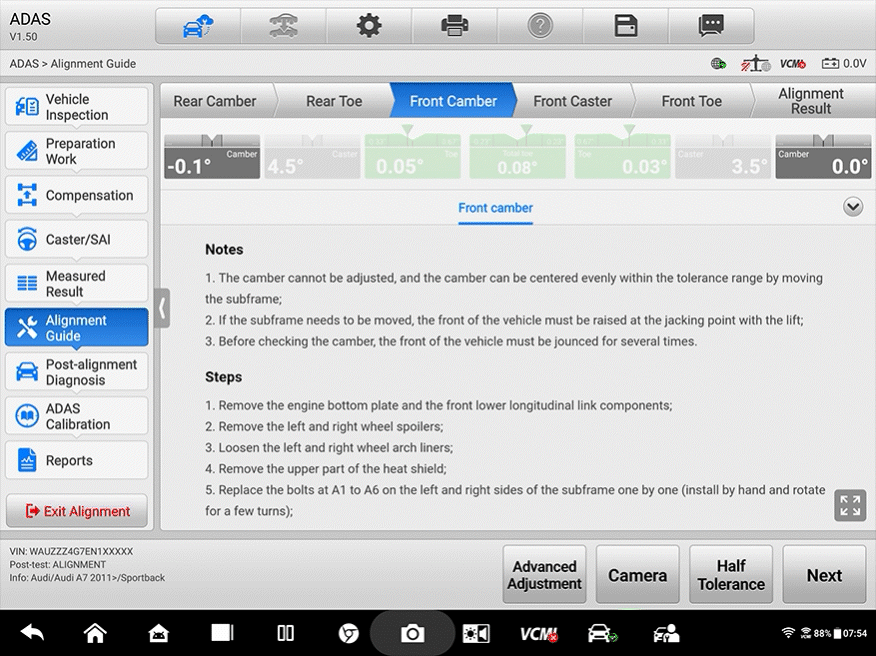

Cradle or Subframe Adjustment
ADAS calibration
Step By Step Illustrated Instructions
Autel was one of the first manufacturers to bring a complete ADAS calibration frame system, comprised of software, hardware, and targeting components, to the aftermarket. Our experience and talent for innovation have enabled us to develop an intuitive, knowledge-based solution that allows technicians in every industry to calibrate ADAS components with precision and efficiency.
Free IA900 ADAS Upgrades
REVV ADAS Identification, Software coverage, & Training

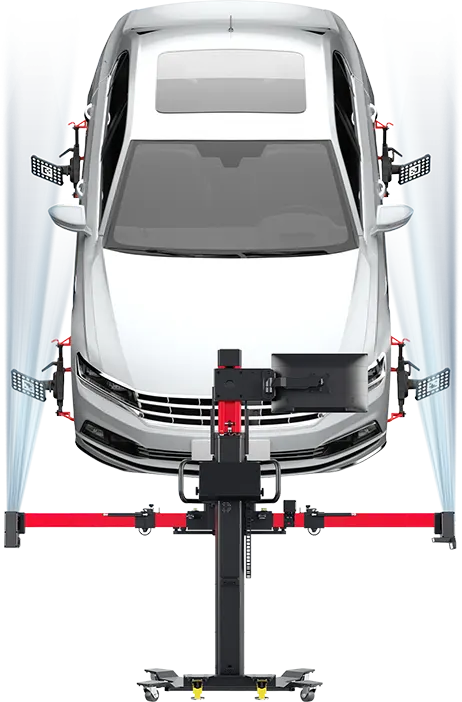

Fully Optical Target Placement
6X faster than mechanical measurements
The precise positioning of a camera pattern, target, or radar calibrator is vital to the successful calibration of any ADAS component. Without optical target positioning this process can be tedious and time-consuming.
The IA900 utilizes frame-embedded HD cameras, targeted tire clamps, and positioning software via the MaxiSYS tablet to accurately recognize targets and calculate the current angle, distance, and offset position of the frame to the vehicle.

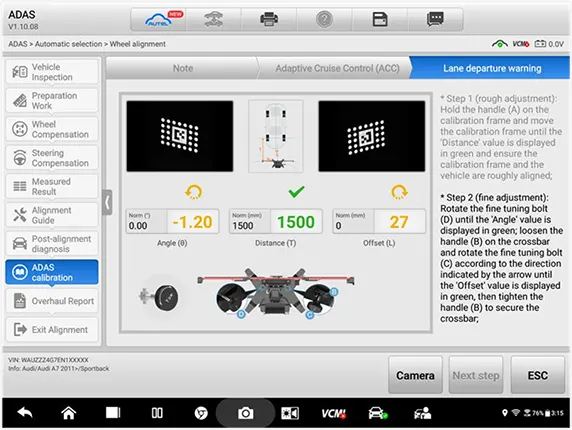

Easy to follow onscreen instructions prompt the user to move the frame or adjust its angle. Green check marks will appear for each parameter once the required position values are achieved. And that’s it – the vehicle is ready for calibration.

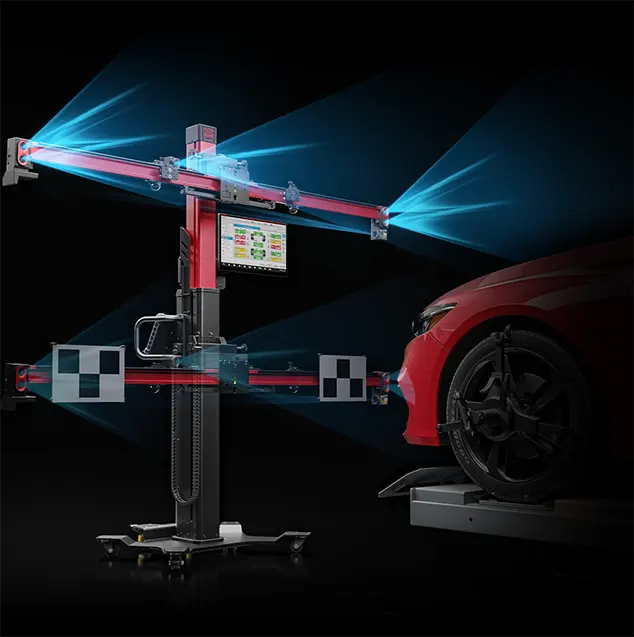

Automatic Height Adjustment
Robotic Crossbar Positioning
Automatic height adjustment sets the crossbar to the correct ADAS calibration height at the push of a button and automatically tracks vehicle height changes on a lift—accommodating everything from full alignment lift height to as low as 6 inches.
Autel is an OEM-approved equipment manufacturer for
Unlevel Floor Compensation
Eliminate Failed Calibrations Due To Uneven Surfaces
Level flooring is one of the critical environmental factors required to achieve successful ADAS calibration. An uneven floor, perhaps due to shop drainage, can result in calibration failure or an unsafe calibration. IA1000 Unlevel Floor Compensation allows for the selection of any type of surface including level floor, unlevel floor, or on a rack, and delivers successful calibration regardless of the flooring status.

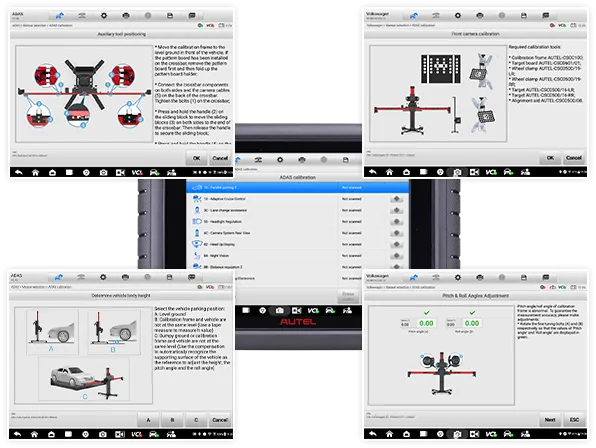

Step-by-step instructions
Increase shop efficiency and reduce the training learning curve
The Autel MaxiSYS tablet displays easy-to-follow step by step instructions and graphical illustrations to ensure every calibration is performed safely and accurately to OE specs.
From pre-calibration vehicle and environment conditioning through positioning, calibration, and documentation, the Autel workflow ensures efficient and reimbursable calibrations every time.

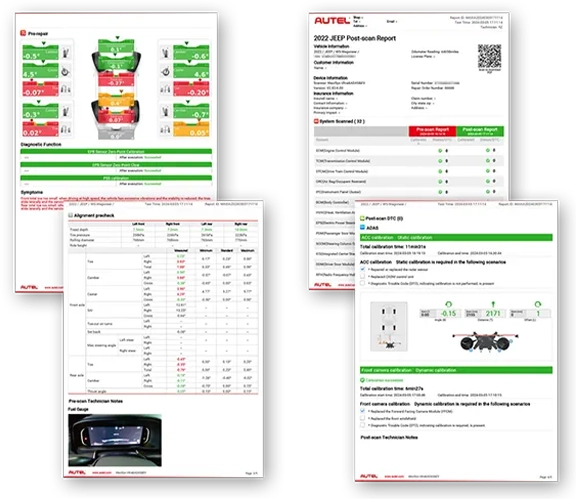

Comprehensive Documentation & Reporting
Validated Target Positioning
No company offers more comprehensive and insurer-ready documentation than Autel. A Pre-scan identifies existing faults and all safety or convenience systems on the vehicle.
The Post-scan includes a detailed report that ensures vehicle owners, sublets, and insurance companies that the faults were repaired, and all OE-required calibrations were performed to OE specifications, requirements, and guidelines.
Expansive Static & Dynamic ADAS System Coverage
Autel offers comprehensive static calibration packages with Lane Departure Warning targets and patterns for Mercedes-Benz, Nissan, Infiniti, Hyundai, Kia, Toyota, Lexus, Mazda, Mitsubishi, Subaru, Volkswagen, Audi, and Alfa Romeo ADAS-equipped vehicles, and Rear Collison Warning and Around View Monitoring mats for numerous vehicle brands including Nissan, Mercedes-Benz, Volkswagen, and Honda, General Motors, Toyota, and Mitsubishi. Available packages also include radar, lidar, and night vision calibrators.
IA900WA Accessories
Improve shop efficiency

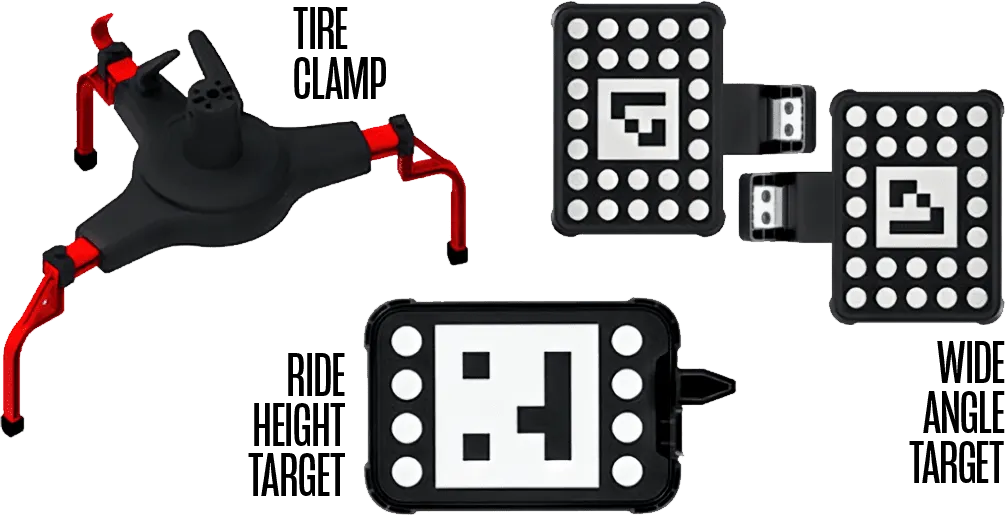

Ride Height, Wide-Angle Targets, Sliding Target Panel, Ultra Docking Station, and a set of Tire Clamps designed to be attached to the vehicle tires rather than the rims are accessories developed to expedite the ADAS calibrations on specific vehicle models to make the overall process more efficient.
Purchase the following accessories to expedite ADAS calibrations on specific vehicle models and to make the overall setup and calibration process more efficient.
- 500-20 Ride Height Target
- 500-21 Wide-Angle Target
- IA900STP Sliding Target Panel
- IA900DOCK Ultra Docking Station
- 500-17 Tire Clamps (Set Of Four)
Ready to get started?
Contact our ADAS experts
Autel Academy Technical Training
Comprehensive in-person classroom and technical training for ADAS, Diagnostic and EV Diagnostic training now available. Our 2-day training course is intended for current or future owners of Autel equipment.
