AutoLINK AL529HD Heavy Duty
Engine Code Reader
The AutoLINK AL529HD is a heavy duty engine code reader for vehicles class 1 (0-6,000LBS) – class 9 (33,000LBS). It can read and erase heavy duty engine DTCS, supports J1939 and J1708 heavy duty protocols, can graph/record/playback live data, and display live and freeze frame data. The AL529HD supports all 10 OBDII test modes, has one-click I/M readiness/emissions testing and has enhanced Mode 6 diagnostics. It is updatable via PC, and includes a color screen, Deutsch 9-pin and Deutsch 6-pin connectors, and an OBDII cable. A 1-year tool warranty and free lifetime software updates are available with purchase.
- Description
- Specifications
- 12,000 LBS Specs
- 14,000 LBS Specs
- Videos
- Downloads

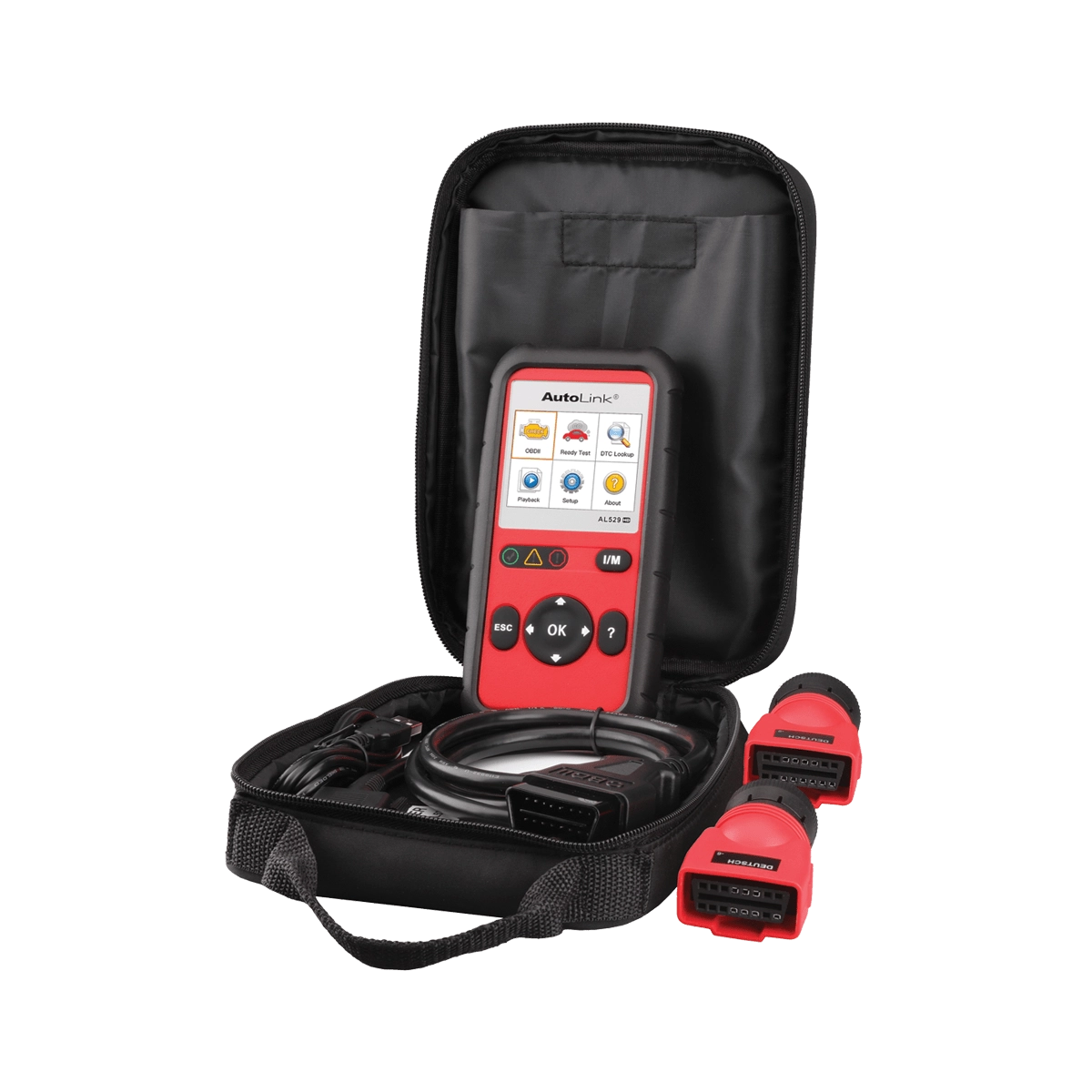

- What's Included
- Compare Similar
- Read/ Erase Heavy Duty Engine DTCs
- Class 1-9 Commercial Vehicles

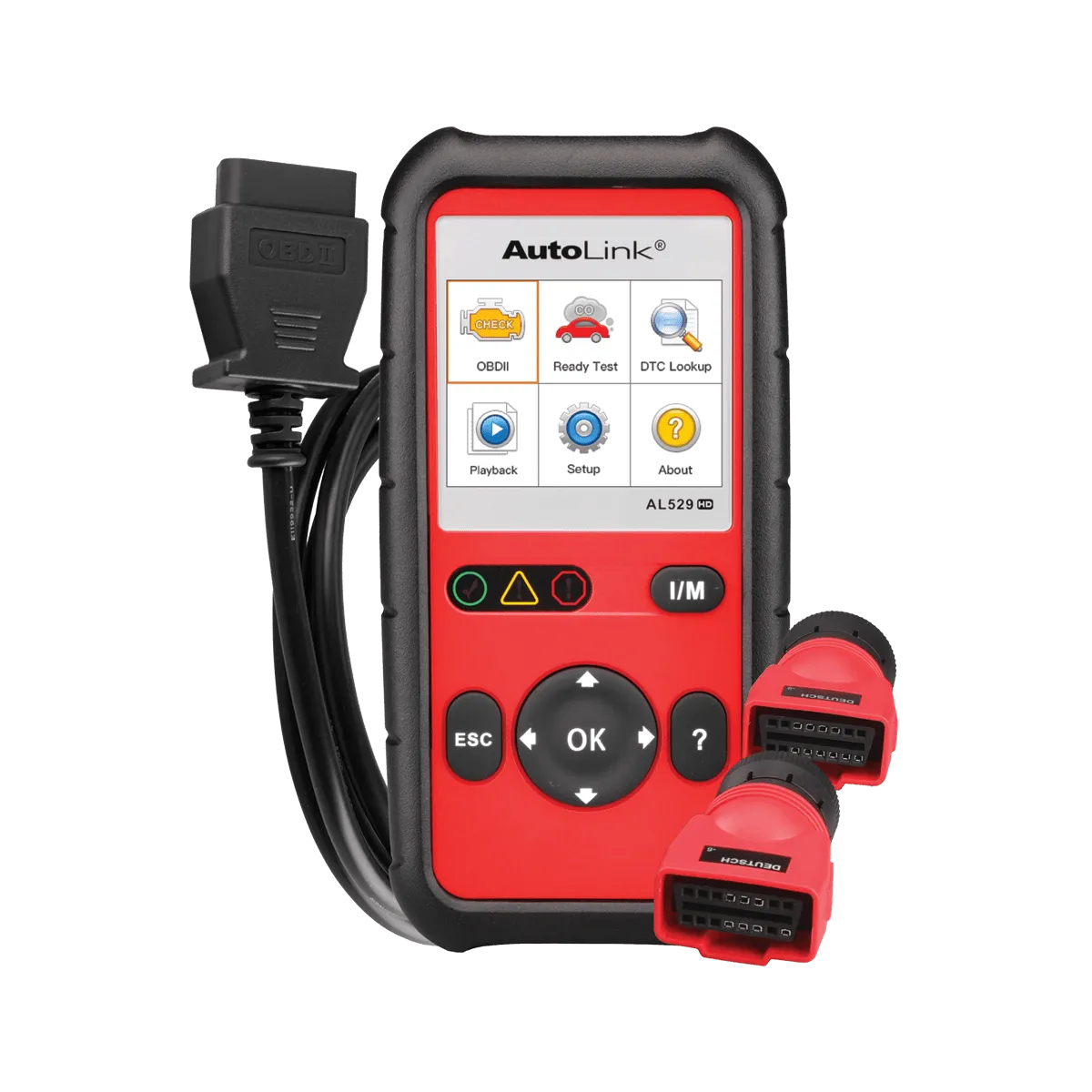

- Includes Deutsch 9-Pin & 6-Pin Adapters
- Supports J1939 & J1708 HD Protocols
- One-Touch I/M Readiness/ LED Indicator
- FREE Lifetime Software (lifetime of tool) & 1Yr Warranty
- Support All 10 OBDII Test Modes
- Enhanced Mode 6 Diagnostics
- Graph, Record & Playback Live Data
- Display Live & Freeze Frame Data
- Covers Domestic, Asian & European Vehicle Manufacturers (1996+)
- Includes OBDII Cable
- Easy-To-Use Navigation /Software Updates via PC
- Full Color Display 320×240
- Save Files with Micro SD Card (not included)
| Display | 2.8-inch LCD (320x240 dpi) |
| Connectivity | USB mini 2.0 OBD II DB15 |
| Operating Temperature | 0℃ to 60 ℃ (32℉ to 140℉) |
| Storage Temperature | -20℃ to 70 ℃ (-1℉ to 158℉) |
| External Power | 9.0 to 28.0 V power provided via vehicle battery |
| Dimensions (LxWxH) | 183 mm (7.2”) x 91 mm (3.58”) x 33 mm (1.3”) |
| Weight | 242 g (0.533 lb.) |
| AutoLINK AL539 | AutoLINK AL529HD Heavy Duty | AutoLINK AL629 | |
|---|---|---|---|
 |  |  | |
| HARDWARE | |||
| Connection | OBDII Cable | OBDII Cable | OBDII Cable |
| Screen | 2.8-Inch Display
320 x 240 DPI / LED Color Screen | 2.8-Inch Display
320 x 240 DPI / LED Color Screen | 2.8-Inch Display
320 x 240 DPI / LED Color Screen |
| Memory | 16GB Micro SD Card
Included | 16GB Micro SD Card
Included | 16GB Micro SD Card
Included |
| SOFTWARE | |||
| Operating System | Easy tool navigation | Easy tool navigation | Easy tool navigation |
| Software Updates | FREE for life of tool | FREE for life of tool | FREE for life of tool |
| Automatic Detection | Auto-Vin 2006+ | Auto-Vin 2006+
Manufacturer-specific codes | Auto-Vin 2006+
Manufacturer-specific codes |
| Vehicle Coverage | US, Asian & European
1996 And Newer | US, Asian & European
1996 And Newer | US, Asian & European
1996 And Newer |
| OBDII Test Modes | All 10 Test Modes
Live & Freeze Frame / Enhanced Mode 6 | All 10 Test Modes
Live & Freeze Frame / Enhanced Mode 6 | All 10 Test Modes
Live & freeze frame / enhanced mode 6 |
| FEATURES | |||
| Language | Tri-Lingual | Tri-Lingual | Tri-Lingual |
| Print Data | USB Cord to PC | USB Cord to PC | USB Cord to PC |
| One Click I/M Readiness | Quick Key Indicator Lights | Quick Key Indicator Lights | — |
| Internet Updates | USB Cord to PC | USB Cord to PC | USB Cord to PC |
| Electrical Tests | Starting, Circuit Charging, Voltage, Continuity & Current | — | — |
| Voltage Test Probes | Included | — | — |
| Emissions Component Test | I/M Readiness
O2 & on-board monitor | I/M Readiness
O2 & on-board monitor | I/M Readiness
O2 & on-board monitor |
| MIL | Read MIL status | Read MIL status | Read MIL status |
| Data | Save & Playback | Save & Playback | Save & Playback |
| Testing | Component Test | Component Test | Component Test |
| Mode 6 | Enhanced | Enhanced | Enhanced |
| Read/Erase DTCS | Engine/TRANS | Heavy Duty Engine | Engine/ABS/SRS/TRANS |
| Manufacturer-Specific Codes | — | Read power system codes for Ford/GM/Chrysler | — |
